Layout
The Builder is built around three persistent surfaces and one main pane that changes with the current route.
Header bar
The header is always visible.| Control | Action |
|---|---|
| Back arrow / “All Workspaces” | Returns to the Builder home (workspace list). |
| Workspace name and icon | Display only. Edit them from Settings → General or by clicking Edit YAML. |
| Workspace description | Truncated to ~200px. Full text in Settings → General. |
| Edit YAML button (file-code icon) | Opens a Monaco editor on the raw workspace index.yml (name, slug, description, config, secret schema, repositories). Saving writes through the workspaces API. |
| AI toggle (sparkles icon) | Opens and closes the right-side AI assistant panel. |
| Version dropdown (visible when a deploy exists) | Switches the main pane to a read-only preview of a previously deployed bundle. |
| Deploy button (rocket icon, primary) | Opens the Deploy modal. |
| Presence avatars | One avatar per other editor currently looking at the workspace. |
Sidebar
The sidebar is the workspace navigation tree.| Entry | Opens | Notes |
|---|---|---|
| Overview | Workspace Overview tab | Default landing tab. |
| Activity | Activity tab | Event log + filters + correlation IDs. See Testing & Debugging. |
| Pages | The page editor. The + action creates a new page; existing pages are listed below. | Each page shows a sublabel: SPA for editable source, Read-only for the version currently being viewed in the version dropdown, Deployed for an immutable deploy snapshot. |
| Automations | The automation editor. The + action creates a new automation; existing automations are listed below. | Automations whose name contains / characters are rendered as folders (finance/invoices/process → finance → invoices → process). |
| Imports | The imports tab. The + action opens the App Store. | Each installed app shows a Disabled badge if its config has it turned off. |
| Files | The Files tab | List of uploaded workspace assets. |
| Settings | The Settings tab | Workspace configuration. |
Editor toolbar
The toolbar above the main pane changes depending on what is being edited.| Control | Visible for | Action |
|---|---|---|
| Item name (inline-editable) | pages, automations | Click to rename. The new value is persisted on Enter or blur. |
| … menu | pages, automations | Exposes Rename, Duplicate, Delete. Delete requires confirmation. |
| Code / Preview toggle | pages | Switches between the source editor and the rendered preview. |
| Desktop / Tablet / Mobile sizing | pages (preview mode) | Changes the preview viewport. |
| Unsaved indicator (red dot) | pages, automations | Shown whenever there are local changes. |
| Save | pages, automations | Disabled until there are local changes. Persists via the workspaces API. |
| Execute | automations | Opens the Execute modal where you set inputs and run the automation once. Disabled when there are unsaved changes (save first). |
Overview tab
The first thing you see when opening a workspace.| Section | Content |
|---|---|
| Alerts | Cards surfacing setup problems or recent failures. Each card has an action link that jumps to the relevant section. |
| Usage stats (7 days) | Three cards (Users, Requests, Errors) with trend arrows, plus a sparkline of requests per day. |
| Top errors | Ranked list of the most frequent error events of the last week. Each row has a “View trace” link that opens Activity filtered on the correlation ID. |
| Recent changes | Last few workspace edits with user, action, file, and timestamp. The “View history” link opens Activity filtered on workspaces.* events. |
| Quick actions | One-click shortcuts: Push on Git (Settings → Versioning) and Publish as App (Settings → Packaging). |

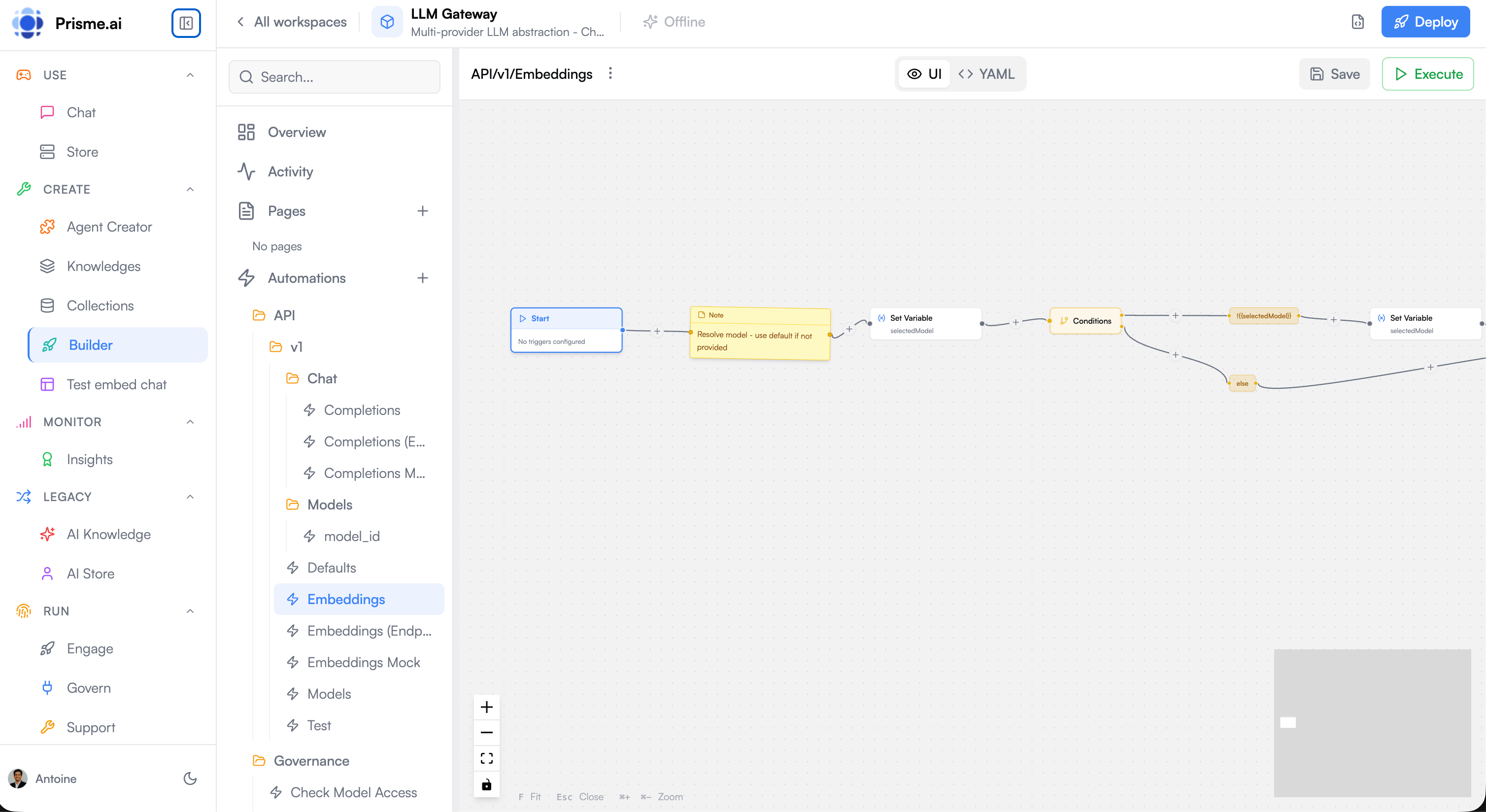

Automation tab
The automation tab is the most feature-rich. Its header strip exposes:| Control | Action |
|---|---|
| Back arrow | Returns to the automation list. |
| Name | Click to rename. Hover to reveal Copy slug. |
| Slug | The unique identifier used in URLs and events. Not editable — derived from slug: in the YAML. |
| Execute | Opens the Execute modal. Disabled if the automation is new or has unsaved changes. |
| Delete | Two-click confirmation; deletes the automation. |
| Save | Disabled until there are changes. Writes the YAML to the workspace. |
Page tab
A page is a React source tree. The tab exposes:- Code view — a file explorer on the left and a Monaco editor on the right. Supports folder creation, file creation, rename, and delete.
- Preview view — Builder compiles the source and renders the React app inside the preview pane, with the runtime
AppPropsinjected (sdk,user,workspace,backends).
Imports tab
The imports tab is where installed apps live.| Control | Action |
|---|---|
Install (sidebar + button) | Opens the App Store modal. |
| App card | Shows the app slug and a Disabled badge if it is turned off. |
| View docs (external-link icon) | Opens the app’s documentation URL. |
| Configure (gear icon) | Opens the per-app config form. Fields are generated from the app’s config schema. |
| Uninstall (trash icon, double-click confirmation) | Removes the app from the workspace. |
App Store modal
- A search box filters apps by name.
- A category filter narrows the catalog.
- Each app card shows its name, description, photo, and last update date.
- Install adds the app to the workspace and creates a default config you can then edit.
Files tab
The Files tab is documented on its own page — see Files.Activity tab
Activity is the workspace event log. It is documented in Testing & Debugging — the page covers correlation IDs, the four views (Table, Timeline, Graph, Distribution), and the filter grammar.Settings tab
Settings is a multi-tab pane. The sections below describe each sub-tab.General
| Field | Persists to |
|---|---|
| Name | Workspace name shown in the sidebar, app store, and breadcrumbs. |
| Description | Long description shown in the overview and (if published) in the app store. |
| Slug | URL-safe identifier used in /apps/<slug> and webhook routes. Changing it breaks existing public URLs. |
| Save | Writes the three fields via the workspaces API. |
Versioning
Documented on the Versioning page — covers the Push, Pull, Export, Import, and Import (Prune) buttons and the differences between them.Secrets
Documented on the Secrets module page — covers the schema-defined secrets and the Additional Secrets form.Security (RBAC)
A Monaco YAML editor on the workspacesecurity document.
| Control | Action |
|---|---|
| Monaco editor | Edits the YAML defining roles, abilities, and per-resource grants. |
| Reset | Reverts to the last saved version. |
| Save | Persists via PUT /workspaces/{id}/security. |
Sharing
| Control | Action |
|---|---|
| Member row | Shows the user, their current role, and a role dropdown. Changing the dropdown calls PATCH /workspaces/{id}/members/{userId}. |
| Delete member | Removes the member from the workspace. |
| Add member form (email + role) | Calls POST /workspaces/{id}/members; sends an invite if the email is unknown, adds the user immediately otherwise. |
Packaging
The Packaging tab lets you publish the workspace as a reusable app in the platform’s app store.| Field | Notes |
|---|---|
| Photo | Image upload. Limited to 2 MB and must be an image MIME type. |
| Slug | The app slug under which the workspace will appear in the store. Once the workspace has been published once, the slug is read-only — it becomes the immutable identifier of the app. |
| Description | Optional short description shown in the app store. |
| Version name | Optional human-readable version label (the version is created regardless). |
| Publish | Uploads the photo (if changed), updates the workspace, then creates an app store entry pointing at the new version. |
Deploy modal
Opened from the Deploy button in the header bar. Documented in Deployment — covers the Publish tab (bundle build, version assignment) and the Share tab (Platform URL, four embed modes,<script> snippet).
Workspace YAML modal
Opened from the Edit YAML button in the header bar. A Monaco editor on the workspaceindex.yml. This file contains:
name,slug,descriptionconfig— non-sensitive parameters ({{config.*}})secrets— the schema of expected secrets (values live in Settings → Secrets)repositories— Git repository configuration (see Versioning)labels— group labels used for bulk operationsimports— installed app references
workspaces.updated event.
