AI model access is one of the cross-cutting concerns the platform handles once, and Model Governance is where you shape it: control which AI models are available to your organization, set usage policies, configure routing strategies, and monitor consumption. The same controls also underpin the platform’s LLM resilience story, letting you downgrade or fail over across providers when a model or cloud is unavailable. Access these features from Agents Controls in the sidebar. Platform-wide settings — the model catalog itself (prices, metrics, limits, lifecycle) and the LLM providers — are managed by platform superadmins in Govern → Models, which has two tabs: Models and Providers. Each section below describes the feature, then how to use it in the interface. When the feature can also be driven programmatically, a last Via the API sub-section holds the endpoints, fields and examples. The LLM Gateway endpoints are documented in the LLM Gateway API reference.

Overview

The Agents Controls section has six tabs:

Tab	Description
Models	Configure allowed models and policies
Usage	Monitor consumption against quotas
Service Accounts	Machine-to-machine authentication

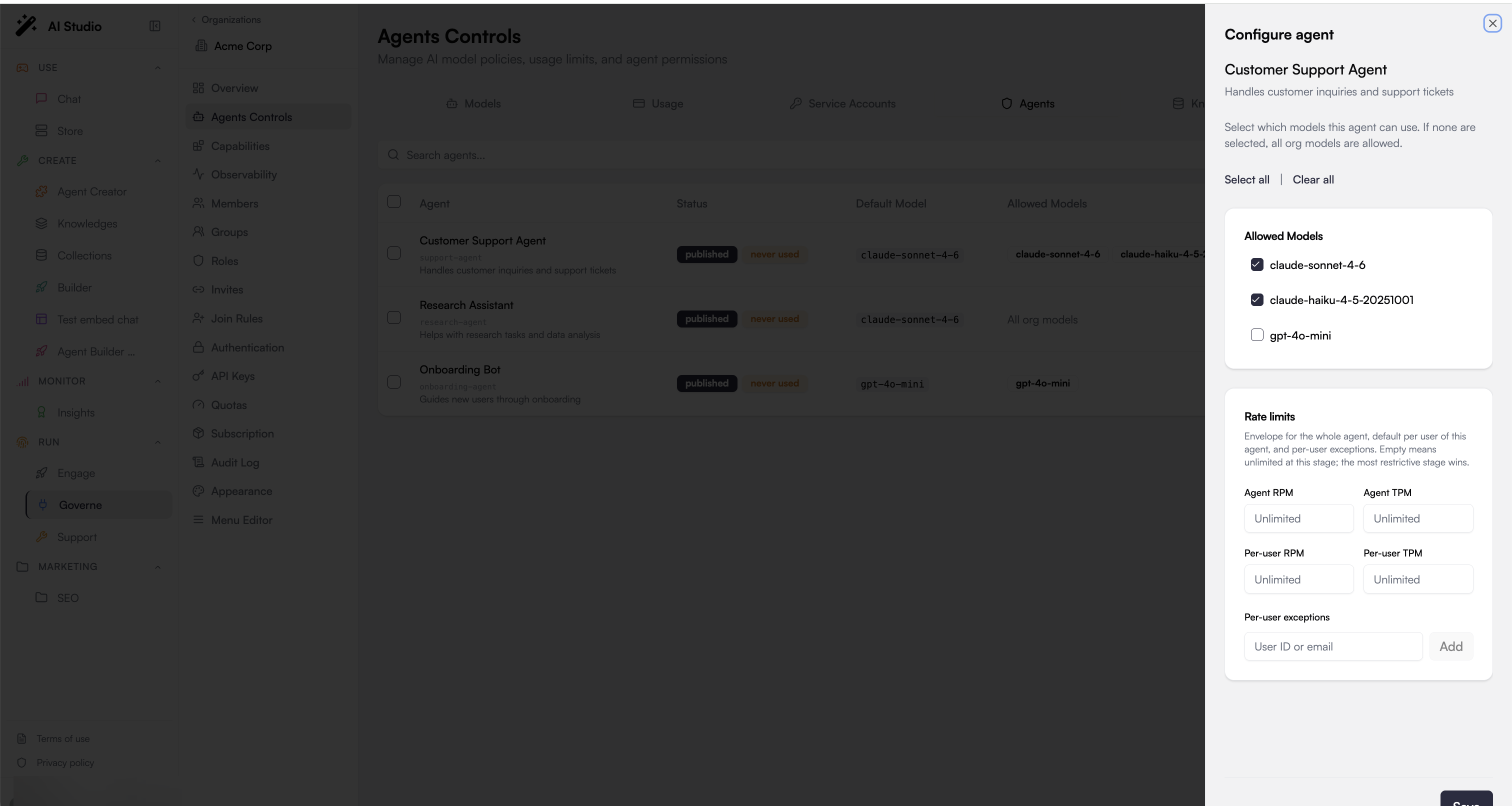

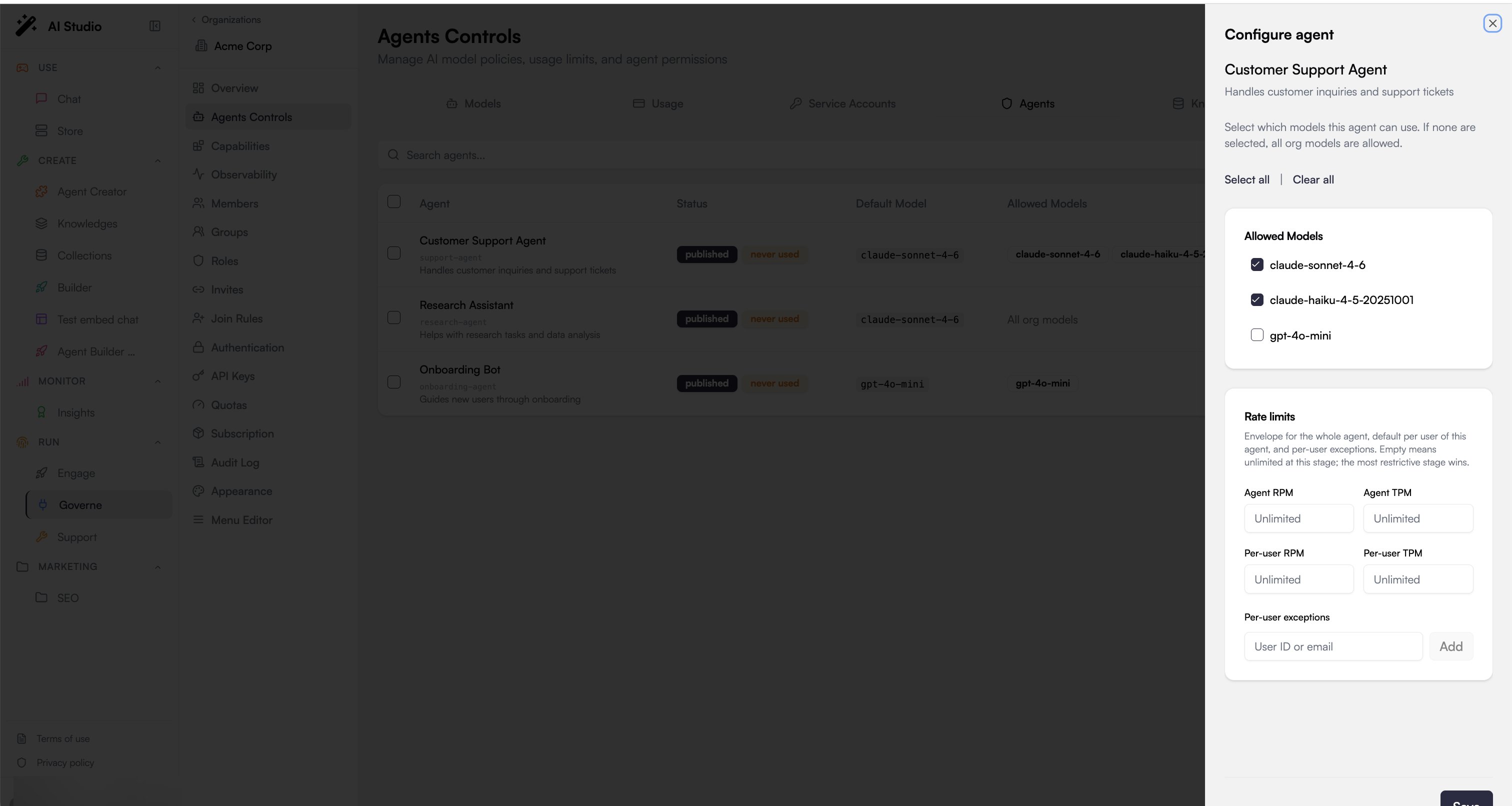

Agents	Per-agent model restrictions and agent hygiene cleanup

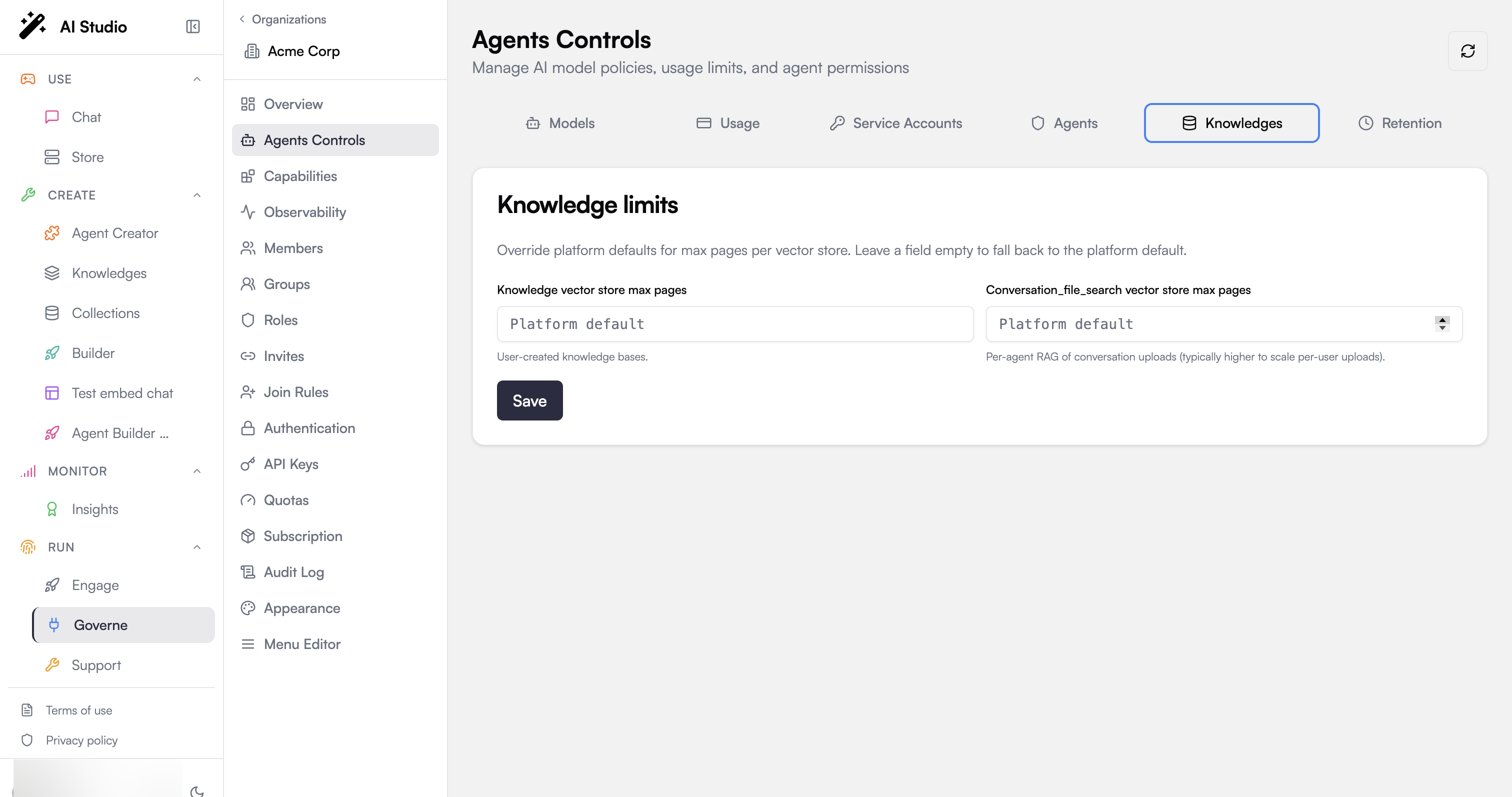

Knowledges	Org overrides for per-vector-store page limits, and per-user access control enforcement
Retention	Org data-retention policy (see Data Retention)

Models Configuration

Everything in this section is set in Agents Controls > Models and applies to your organization. Changes take effect when you click Save.

Allowed Models

By default, organizations can use all models enabled by the platform administrator. You can restrict this to a specific list.

Go to Agents Controls > Models
In the Allowed Models card, check the models to allow under Available models (Select all / Deselect all act on the models matching the provider filter)
Drag the selected models to reorder them: this order drives the model picker everywhere users select a model
Click Save

An empty list means no restriction: every model the platform administrator enabled is allowed.

Default Models

Set the default models used when agents don’t specify one, in the Default Models card:

Setting	Description
Default Completion Model	Used for chat and text generation
Default Embedding Model	Used for vector embeddings
Default Image Generation Model	Used for image generation

Default Image Generation Model can be left on Platform Default. The File Parsing Models card, below, overrides the models used to parse images (Image Parsing, requires vision), audio (Audio Parsing) and documents (Document Parsing) uploaded to vector stores; leave them on Platform Default to use the platform defaults. The tab shows a warning when a default, mapping or routing target is not in the allowed models list.

Transcription model for dictation

Chat dictation and the transcription endpoint turn speech into text with a model of type transcription. Without one, users dictate with their browser’s own speech service in desktop Chrome and Edge, which sends the audio to the browser vendor (Google for Chrome, Microsoft for Edge), and do not see the microphone button in other browsers.

Model type. In Govern → Models, a platform superadmin declares transcription models with the type Transcription (speech-to-text), for example gpt-4o-transcribe, gpt-4o-mini-transcribe or whisper. Transcription goes through OpenAI, Azure OpenAI, and OpenAI-compatible providers; Vertex and Bedrock models cannot be used for it.
Platform default. In Govern → Models → Providers, the Defaults card has a Transcription (dictation) field (Transcription (dictée) in the French interface). This model is used when a request names no model. On the Prisme.ai SaaS platform, the default is gpt-4o-transcribe on Azure OpenAI, in the EU Data Zone, so audio is processed in the EU.
Test. Open the model and select Test: the gateway sends a fraction of a second of silent audio to the model and reports whether it answered. The test is not counted as usage.
Allowed models. If your organization restricts its Allowed Models, include a transcription model in the list. Otherwise members of the organization dictate with their browser’s speech service in desktop Chrome and Edge, get no microphone button elsewhere, and API calls are refused. Under a Soft Downgrade policy, a transcription model outside the list is replaced by the default transcription model.
Permission. Using transcription requires the Use Audio Transcriptions permission in the role editor. The system Member, Agent Maker and Builder roles grant it by default. Custom roles, and system roles your organization has already edited, do not get it automatically: add it to those whose holders should dictate. When the platform or the organization has a transcription model, holders without it cannot dictate at all, in any browser: removing it from a role turns dictation off for its holders. The permission is not checked when there is no transcription model at all. See Roles & Permissions.
Browser dictation fallback. When there is no transcription model at all, or the organization’s allowed models leave it out, desktop Chrome and Edge dictate with the browser’s own speech service (Google or Microsoft). A role without Use Audio Transcriptions never gets this fallback when a model exists. A platform superadmin can turn it off for the whole platform with Browser dictation fallback in Govern → Models → Providers → Defaults, and an organization administrator for the organization with Allow browser dictation fallback in Agents Controls → Models. Both are on by default; with either off, users without a usable transcription model get no microphone. The organization can only turn it off, never back on over the platform. Changes apply when users reload the chat.
Analytics. Each transcription is recorded with the organization, user, model, provider, audio size and provider usage. The audio itself is never stored.

Via the API

Transcription is served by POST /v1/audio/transcriptions.
A transcription model outside the organization’s allowed models is refused with 403 MODEL_NOT_ALLOWED (unless the policy is Soft Downgrade, see above).
The permission is llm-gateway:models:audio-transcriptions.
The browser dictation switches are defaults.browser_dictation in the LLM Gateway workspace config (platform) and allow_browser_dictation in the organization’s settings.llm; only false turns the fallback off. GET /v1/defaults reports the outcome for the caller as transcription.browser_fallback.
Each transcription emits an analytics.llm.transcription event carrying the organization, user, model, provider, audio size and provider usage.

Quota Policy

Configure what happens when quota limits are reached, in the Quota Policy card:

Policy	Behavior
Hard Block	Requests fail with quota exceeded error
Soft Downgrade	Fall back to a cheaper model

Downgrade Mapping

When using soft downgrade, configure which models to substitute. The Downgrade Mappings card appears once Soft Downgrade is selected: click Add Mapping, then pick the source and target models (both are chosen among the allowed models). For example:

claude-3-opus → claude-3-sonnet
gpt-4 → gpt-3.5-turbo

This ensures continuity when expensive models hit quota limits.

Failover Mapping

Configure automatic failover when a model is unavailable, in the Failover Mappings card: click Add Mapping, then pick the source and target models among the allowed models. For example:

claude-3-sonnet → claude-3-haiku
gpt-4 → gpt-4-turbo

Failover activates when the primary model returns errors, not for quota limits. Failover behavior:

5xx errors: switches to the failover model from the mapping, or falls back to the default completion model (with linear backoff 1s, 2s, 3s…)
429 rate limits: retries the same model after a 5s backoff
Other 4xx errors: returned immediately without retry
Up to 3 attempts (configurable, hard cap of 10)
Failover models are validated against governance access controls before use
Failover only applies to non-streaming requests

Via the API

The Models tab reads and writes the organization’s settings.llm object: allowed_models (ordered), default_completion_model, default_embedding_model, default_image_generation_model, file_parsing, quota_policy (hard_block or soft_downgrade), downgrade_mapping and failover_mapping (objects mapping a source model id to a target model id), and routing_config (see Model Routing). It saves them with PATCH /v2/orgs/{orgSlug} on the settings object.

That PATCH replaces settings wholesale. Read the organization first, merge your change into the settings you got back, and send the complete object — see Requiring identity headers under Provider Options for the details.

The ⋮ toolbar of the tab exports and imports this configuration as JSON (Export JSON / Import JSON). An import replaces the configuration in the editor; review it, then save to apply.

Model Routing

The LLM Gateway supports intelligent model routing: selecting the best model for a request based on configurable strategies. Requests opt into routing by asking for the model auto (see Using auto below). Pick the strategy in Agents Controls > Models, Routing Strategy card, then click Save.

Routing Strategies

Strategy	Description
Disabled	No automatic routing; use specified model
Rules	Rule-based routing: first matching rule wins
LLM Classifier	Use a cheap LLM to classify the request and map category to model
Capabilities	Query model catalog for enabled models matching required tags
Cost Optimized	Same as capabilities but iterates cost tiers (`low` → `medium` → `high`) to pick cheapest match
Hybrid	Try rules first, fall back to LLM classifier if no rule matches

Each strategy shows its own settings under the cards:

Rules and Hybrid: Routing Rules, see below.
LLM Classifier and Hybrid: Classifier Model (the cheap model used to classify), Categories, and Category → Model Mapping. With Hybrid, Classifier Fallback classifies with an LLM when no rule matches.
Capabilities and Cost Optimized: Required Tags. Cost Optimized adds Allowed Cost Tiers (Low, Medium, High).

Rule-Based Routing

Define conditions to route requests to different models: under Routing Rules, click Add Rule, then set Messages count, an operator, a threshold and the target model. For example, send short conversations (fewer than 5 messages) to claude-3-haiku and longer ones to claude-3-sonnet. The only supported condition type is the messages count (messages_count), with operators <, >, <=, >=, =. If the selected model is blocked by governance, routing falls back to the default.

For load testing, the gateway also exposes built-in fake models that return instant responses without calling a provider. They bypass the routing, quota and failover logic described above — see Mock Models.

Via the API

Routing configuration

The strategy is stored in the organization’s settings.llm.routing_config (see Models Configuration → Via the API). A rule-based configuration:

routing_config:
  strategy: rules
  rules:
    - condition: messages_count
      operator: "<"
      threshold: 5
      model: claude-3-haiku
    - condition: messages_count
      operator: ">="
      threshold: 5
      model: claude-3-sonnet

For an LLM Classifier strategy, the routing configuration maps a classified category to a target model:

routing_config:
  strategy: llm_classifier
  classifier_model: claude-3-haiku
  categories: [coding, legal, general]
  model_map:
    coding: claude-3-5-sonnet
    legal: claude-3-opus
    general: claude-3-haiku

The Capabilities and Cost Optimized strategies read required_tags, and Cost Optimized also allowed_tiers.

Using `auto`

Once a routing strategy is configured for your organization, send model: "auto" in the request body and the LLM Gateway selects the model for you. This is the supported way to consume routing today: through the REST API and through MCP tools that call the gateway.

curl https://{host}/v2/workspaces/slug:llm-gateway/webhooks/v1/chat/completions \
  -H "Authorization: Bearer $API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "auto",
    "messages": [{ "role": "user", "content": "Summarize this contract clause..." }]
  }'

The gateway resolves auto against the strategy defined in Agents Controls, enforces the governance allowlists, and returns the completion from the model it selected. If routing cannot resolve a model, it falls back to the organization’s default completion model. The response reports the model that actually served the request, so you can confirm which one was chosen. See Create a chat completion.

auto is currently an API and MCP capability. Selecting auto from the chat model picker, or from an agent’s model dropdown in the interface, is being rolled out progressively and is not yet a supported end user path. Do not add auto manually to the organization’s Models list to expose it in chat: a streamed chat request routed this way may stay in a loading state. Until interface support ships, keep a concrete model (for example Haiku 4.5) selected in chat, and use auto through the API or MCP.

Usage Monitoring

The Usage tab shows consumption against your subscription quotas.

Tracked Metrics

Metric	Shown as	Type	Description
`llm.requests.rpm`	Requests per Minute	Rate	Requests per minute
`llm.requests.daily`	Daily Requests	Rate	Requests per day
`llm.tokens.monthly`	Monthly Tokens	Cumulative	Total tokens this month
`llm.cost.monthly`	Monthly Cost	Cumulative	Total cost this month

Understanding Quotas

Quotas are defined in your subscription:

Rate limits reset after the time window (minute, hour, day)
Cumulative limits accumulate until the billing period resets

Usage Display

Each metric shows:

Current value vs. limit
Percentage consumed
Visual progress bar (orange from 70%, red above 90%)

Each card also has a Limit field. Change it and click Update Limits to update the limit in the organization’s default subscription.

Model pricing

Every cost figure the platform shows you — Total Cost and Cost by Model in Observability → LLM, the Cost ($) series in Insights → Consumption, the llm.cost.monthly quota metric above — is computed from prices you enter in the model catalog. The platform ships no price list and reads no provider invoice.

How a cost is calculated

On every call, the LLM Gateway multiplies the tokens actually consumed by the model’s catalog prices. Without prompt caching:

cost = prompt_tokens     × input_per_1m_tokens  / 1 000 000
     + completion_tokens × output_per_1m_tokens / 1 000 000

When the provider reports prompt-cache reads or writes, those input tokens are taken out of the full-price input and priced on their own:

uncached = prompt_tokens − cache_read − cache_write        (never below 0)
cost = uncached          × input price       / 1 000 000
     + cache_read        × cache read price  / 1 000 000
     + cache_write       × cache write price / 1 000 000
     + completion_tokens × output price      / 1 000 000

The cache prices are the model’s Cached input (per 1M tokens) and Cache write (per 1M tokens) when you set them (0 means free). Left empty, they are a ratio of the input price chosen from the model id: reads at 10% (50% for ids containing gpt-4o, 25% for gpt-4.1, o3 and o4), writes at 125% for ids containing claude and 100% otherwise. The result is rounded to 6 decimals and emitted on the analytics.llm.completion event, which is what every dashboard aggregates. There is no multiplier and no margin anywhere in the chain beyond those provider cache ratios. A displayed cost is tokens × your catalog price, and nothing else. If a dashboard total is off by a factor, the prices in the catalog are off by that same factor — that is the only place the discrepancy can come from.

Prices are environment data, not a platform default

Prices are configuration, like credentials or quotas: each environment carries its own, and a platform administrator enters them. The providers’ public list prices are a reasonable starting point. If you buy through a negotiated contract, a reseller, or committed-use discounts, enter your contractual prices instead — otherwise the dashboards report list price while you are billed something else.

A model with no price costs 0, silently. The gateway computes a cost only when both the input and the output price are set. Otherwise the cost is 0 — no error, no warning, no badge. The model keeps working, and it appears free in every dashboard, in the per-user chargeback table, and against the llm.cost.monthly quota.Scale mistakes are just as quiet. The fields are per 1M tokens: entering a per-1K price there understates every cost by a factor of 1000, and nothing flags it.Embedding models use the input price only; leaving their output price empty is normal and does not zero the cost.

Costs are never recalculated

A cost is frozen at the moment of the call and stored on the event. Correcting a price changes future calls only — history keeps whatever it was computed with. There is no backfill, so a period priced wrongly stays wrong in the dashboards. Fix the price as soon as you notice it, and treat the affected window as known-bad rather than waiting for it to correct itself.

Currency

Dashboards label costs $. The platform performs no conversion: whatever number you enter is the number displayed. If your contract is in euros, entering euro prices makes every dashboard read euros under a $ sign — pick one currency per environment and stay with it.

Setting prices in Govern

Reserved to platform superadmins.

Go to Govern → Models and open the Models tab.
Click the model to open it.
In the Pricing block (Tarification in the French interface), fill Input (per 1M tokens) and Output (per 1M tokens). On completion models, Cached input (per 1M tokens) and Cache write (per 1M tokens) are optional (see How a cost is calculated).
Save.

Both fields take the price of one million tokens. For a model listed at $2.50 per million input tokens and $10.00 per million output tokens, enter 2.5 and 10. The new price applies to the next call.

Bulk import replaces the entire catalog. Importing a JSON catalog from the ⋮ menu (Import JSON) is a wholesale replacement, not a merge: every model absent from the file is deleted, and the prices carried by the file overwrite the ones in place.Import files therefore carry the source environment’s prices. After importing from another environment — staging into production, or one tenant into another — re-check prices model by model before trusting any dashboard.

`cost_tier` is a label, not a price

Do not confuse pricing with the Cost Tier field (low / medium / high) in the model’s Metrics block. The tier drives the Cost Optimized routing strategy and the soft-downgrade policy, and it is what end users see in the model picker. It never enters the cost calculation. The two are independent in the data but must stay consistent in practice: a model priced at the top of your catalog and tagged low will be picked first by cost-optimized routing and read as cheap by everyone choosing a model. Set the tier from the prices, and revisit it whenever prices change. See Available Models → Cost tiers.

Checklist after adding or importing models

Every enabled completion model has both prices set.
Prices are per 1M tokens, in a single currency across the environment.
Every embedding model has its input price set.
Each cost_tier is consistent with the model’s actual prices.
Run one test call per model, then confirm a non-zero cost for it in Observability → LLM. A model sitting at 0 after a real call has no price.

Via the API

Set prices with PATCH /v1/models/{model_id}:

PATCH {api}/v2/workspaces/slug:llm-gateway/webhooks/v1/models/{model_id}

{
  "pricing": {
    "input_per_1m_tokens": 2.5,
    "output_per_1m_tokens": 10
  }
}

The optional cache prices are cache_read_per_1m_tokens and cache_write_per_1m_tokens (0 = free; a negative or null value is ignored). The model cache is flushed automatically, so the new price applies to the next call.

The PATCH replaces the whole pricing object — it does not merge field by field. Always send both keys, even when changing one (and the cache prices you want to keep): sending only output_per_1m_tokens drops the input price, and the model silently falls back to a cost of 0.

The bulk import of the ⋮ menu corresponds to PUT /v1/models, with the same wholesale-replacement behavior: every model absent from the body is deleted.

Reference catalogue (recommended metrics)

The LLM Gateway ships a reference catalogue: Prisme.ai’s recommended values for the Metrics block of each known model. It covers completion and embedding models, and is maintained with the platform: it changes only when the LLM Gateway workspace is updated. For each model, the catalogue recommends an eco score, a cost tier, an energy per token and a PUE profile (completion models only), gives an indicative provider list price, and describes the model: type, context window, maximum response tokens, end-of-life date, capabilities, embedding dimensions, and the request parameters to exclude or rename. energy_per_token follows the method described in Carbon Footprint; eco_score and cost_tier are tiers derived from energy and from the reference price. The reference price is never written to your models: see Prices are environment data. Reading the catalogue changes nothing in your environment.

Using the catalogue in Govern

Reserved to platform superadmins, in Govern → Models. In the model form. Open a model, or add one:

The Catalogue model select (Modèle catalogue in the French interface), at the top of the form, links the model to a catalogue entry. When it is empty, it is pre-selected by matching the model id, and re-matched as you type the id, until you pick an entry yourself. Choose None to unlink the model.
Next to each metric (Eco Score, Cost Tier, Energy/Token, PUE Profile), the training date and the context window, a Prisme.ai suggestion badge shows the recommended value when yours differs. Apply copies it into the field. A suggestion bar does the same for capabilities, listing only the flags that differ.
On a new model, the fields you have not touched are pre-filled from the linked entry, including the End of life date and the parameters to exclude or rename (see Per-model exclusions and renames).
An info icon on the Pricing heading shows the entry’s reference price. It is indicative only and is never copied into your prices.

Nothing is saved until you save the model. From the ⋮ menu, Update from catalogue (Mettre à jour depuis le catalogue) opens a window with three tabs, each with its own Apply all that only acts on that tab:

To update runs the sync as a dry run and lists, per model, each metric that differs, as old value → recommended value, along with the models about to be linked to an entry. Apply on a row applies that model only; Apply all applies every row.
Kept values lists what the sync deliberately does not overwrite: values set on your models that differ from the catalogue, such as excluded or renamed parameters or the forced tool choice flag, which can depend on the host serving the model. Apply replaces them with the catalogue value, model by model.
Add models lists the model ids declared but not registered. Pick the catalogue entry for each (one is pre-selected by matching) and add the model in one click: it is created with the entry’s spec and recommended metrics. Set its prices afterwards — they are not filled in (see Model pricing).

Apply all overwrites the four metrics on every listed model, including values you set on purpose. Check the old → new table first, and use the per-row Apply when only some models should change.

Via the API

GET {api}/v2/workspaces/slug:llm-gateway/webhooks/v1/models/catalog

Reading the reference catalogue requires read access to models. For each model, an entry carries:

Field	Content
`key`	Canonical model id, e.g. `claude-sonnet-4-6`
`aliases`	Known deployment ids for the same model, e.g. `vertex-claude-sonnet-4-6`
`suggested`	Recommended `eco_score`, `cost_tier`, `energy_per_token`, `pue_profile` (completion models only)
`reference_pricing`	Indicative provider list price, in USD. Never written to your models: see Prices are environment data
`spec`	Type, context window, maximum response tokens (`max_response_tokens`), end-of-life date (`end_of_life`), capabilities, embedding dimensions, and request handling (`provider_config`: forced tool choice, `exclude_params`, `rename_params`, and `api`: `responses` for models that need the Responses API, such as the GPT-6 family. `api` only prefills a model when it is created and the catalogue update never changes it)

The response also states its methodology_version, source and verified_at date. In Update from catalogue, the To update tab is the sync’s dry run, per-row Apply is the sync with model_ids and dry_run: false, Apply all is the sync with dry_run: false, and Kept values are applied by a model PATCH (the divergent entries of the sync, below).

Linking a model to the catalogue: `catalog_id`

Each model can carry a catalog_id, the key of its catalogue entry. Model ids differ from one environment to the next (az-gpt-4o, vertex-claude-sonnet-4-6…), so the link is resolved once by name and then stored. From then on, everything joins on catalog_id without re-matching names. In Govern, it is the Catalogue model select of the model form.

Via the API

Set catalog_id when creating or editing a model (POST /v1/models, PATCH /v1/models/{model_id}): a string of at most 128 characters. Send null to unlink the model.

Aligning an environment with the catalogue

The sync brings the environment’s models in line with the catalogue. In Govern, it is what the To update tab of Update from catalogue runs (see Using the catalogue in Govern): run as a dry run when the window opens, then applied by Apply or Apply all. Per model:

Back-fill catalog_id when the model has none. The model id is matched against catalogue keys and aliases, ignoring case and separators (-, ., _, :, spaces), then again after stripping common deployment prefixes (az-, azure-, vertex-, gcp-, bedrock-, aws-, openai-, oai-, ovh-). An exact match always wins over a looser one.
Apply the recommended metrics of the entry found by catalog_id. Only the selected metrics fields are updated; pricing and every other field are left as they are. Embedding entries carry no recommended metrics, so embedding models only get their catalog_id and the spec fields of step 4.
Uncheck Accepts forced tool choice on completion models that the catalogue measured as refusing a forced tool_choice, when the model has no value yet. This sets provider_config.supports_forced_tool_choice to false and keeps the rest of the Provider Config. A model left unset already accepts forced tool choice, so models the catalogue measured as accepting are not changed. A value already set on the model is never overwritten. If it differs from the catalogue, the model is listed under Kept values (divergent).
Apply the spec fields. end_of_life, limits.max_response_tokens and the Capabilities follow the catalogue: they are updated whenever the catalogue differs (providers move their retirement dates; the maximum and what the model accepts are facts about the model). For capabilities, the sync sets the flags the catalogue defines (text, vision, image, audio, file.enabled); a flag missing on the model counts as unchecked. A file size limit you set (file.max_size above 0) is kept, otherwise the catalogue’s is taken once files are enabled. Other keys of capabilities are left as they are. A deployment that does not accept one of them (for instance no file input) must be left out with fields or model_ids, or unchecked afterwards. limits.context (Context window), provider_config.exclude_params and provider_config.rename_params are only filled when the model has none: a value you set is kept, and listed under Kept values (divergent) when it differs from the catalogue. provider_config.api is never changed: a model already served works with the API it has. Response Tokens (limits.response_tokens) is never synced: it is your environment’s default output per call — the max_tokens the gateway sends when the caller sets none, and the share of the context window agents without their own limit keep for the answer.
Release carbon regions that change nothing. On every model, with or without a catalogue entry: a stored carbon region equal to what its provider entry gives (or to World when the provider gives none), or not one of the six regions, is cleared so the model follows its provider again. Earlier versions required a region and filled it once from the provider, so such a value was rarely a deliberate choice. A region that differs from the provider is an override and is kept.

The window’s counters show the Total of models, those To link (back-filled), and those Unchanged.

Via the API

POST /v1/models/catalog/sync runs the sync:

POST {api}/v2/workspaces/slug:llm-gateway/webhooks/v1/models/catalog/sync

{
  "dry_run": true,
  "model_ids": ["az-gpt-4o", "vertex-claude-sonnet-4-6"],
  "fields": ["eco_score", "energy_per_token"]
}

Body field	Default	Effect
`dry_run`	`true`	Report what would change, write nothing. Send `false` to apply.
`model_ids`	all models	Restrict the sync to these models.
`fields`	the four metrics, `supports_forced_tool_choice`, `end_of_life`, `max_response_tokens`, `context`, `capabilities`, `exclude_params`, `rename_params` and `region`	Restrict which fields are updated.

The response lists what was (or would be) done:

{
  "dry_run": true,
  "summary": { "total": 2, "backfilled": 1, "patched": 1, "unchanged": 1, "unmatched": 0, "divergent": 0 },
  "backfilled": [
    { "model_id": "az-gpt-4o", "catalog_id": "gpt-4o", "match": "alias" }
  ],
  "patched": [
    {
      "model_id": "vertex-claude-sonnet-4-6",
      "catalog_id": "claude-sonnet-4-6",
      "fields": ["energy_per_token"],
      "before": { "energy_per_token": 0.00001 },
      "after": { "energy_per_token": 0.000016 }
    }
  ],
  "unmatched": [],
  "divergent": []
}

match tells how the back-fill resolved the id: exact, alias, strong (after prefix stripping) or strong_alias. A model listed in unmatched has no catalogue entry; set its metrics by hand. An entry of divergent ({model_id, catalog_id, field, current, catalog}) is a model whose forced tool choice flag, context window, exclude_params or rename_params differs from the catalogue. The sync leaves it alone. A context window is kept because a host can serve less than the publisher (a smaller window on a cloud deployment, a long context reserved to a beta header): correct it by hand when the value set is wrong. before and after only carry the fields that change; for capabilities, only the flags that change ({"vision": false, "file.enabled": false}). Run the Test button probe on that model to decide which value is right for your environment. A model your environment serves differently from the provider’s own API may accept forced tool choice even though the catalogue says it refuses it: if the dry run proposes supports_forced_tool_choice for such a model, leave it out with model_ids or fields. The sync requires write access to models.

Run a dry run first, and read it. With "dry_run": false, the sync overwrites the selected metrics and capabilities on every matched model, including values you set on purpose. Use fields and model_ids to keep it to what you mean to change. The model cache is flushed for each updated model, so the new values apply to the next call.

Models declared but not registered

A model id can be declared in the gateway’s provider configuration without being registered as a model in your environment; it is not usable until it is registered. The Add models tab of Update from catalogue lists those ids, each with its provider, and registers them in one click (see Using the catalogue in Govern).

Via the API

GET /v1/models/unregistered lists the model ids declared in the gateway’s provider configuration that are not yet registered as models in your environment, each with its provider (openai, azure, openailike, anthropic, vertex, bedrock). It feeds the Add models tab of Update from catalogue. Only the ids are returned, never the provider credentials. It requires write access to models.

Adding models from a provider

In Govern → Models → Providers, each provider entry has an Add models button next to its list of models (deployments for Azure OpenAI). It lists the models the provider itself exposes for that entry, so you can declare them in one click instead of typing their ids:

Provider	What is listed
OpenAI, OpenAI-compatible	The endpoint’s `/models`
Azure OpenAI	The resource’s deployments
Anthropic	`/v1/models`
Vertex AI	Model Garden publisher models (Google, Anthropic, Mistral, Meta), as full resource paths
AWS Bedrock	The region’s foundation models and system inference profiles (`eu.`, `us.`, `global.*` cross-region ids)

Models already declared in the entry, directly or through an alias, are marked Configured. For the others, each row (Provider model) takes two optional choices before you click Add:

Alias (optional): the public id to declare instead of the provider’s own id (Vertex resource paths, Bedrock ids…). It is added to the entry’s list and mapped to the provider id in Model Aliases (model_aliases); agents and API callers use the alias.
Catalogue model: the model is also registered, pre-filled from that catalogue entry. Its carbon region comes from the provider entry (see Setting the region).

Nothing is written until you Save the providers configuration: the configuration is saved first, then the models are registered. A registration that fails is listed and kept for the next save. Without a catalogue model, register the model afterwards, for instance from Update from catalogue → Add models. The list is read from the saved configuration, with the entry’s own credentials, which never reach the browser: save a new or modified entry before listing its models.

Via the API

GET {api}/v2/workspaces/slug:llm-gateway/webhooks/v1/providers/{type}/{index}/models

See List the models available at one provider entry. type is a key of the providers configuration (openai, azure_openai, openailike, anthropic, vertex, bedrock) and index the entry’s position (0 for openai and anthropic). Each model keeps the fields returned by the provider, plus id (the value to declare), declared and registered. A provider error comes back as a 502 (code: PROVIDER_LIST_FAILED) with its message; the provider’s raw details go to an error event (ProviderListModelsFailed), not to the caller. An unknown entry returns a 404 (PROVIDER_NOT_FOUND). The credentials need the listing permission on the provider side, for instance bedrock:ListFoundationModels and bedrock:ListInferenceProfiles on AWS. On Save, the interface saves the providers configuration first, then creates each queued model with POST /v1/models.

Prompt caching

Prompt caching is on by default for conversations: requests that carry an analytics_context.context_id or a prompt_cache_key. Repeated context — system prompt, tools, conversation history and tool results — is re-read at a discount instead of being billed again. One-shot calls, which carry neither, are not cached: on Anthropic and Bedrock a cache write costs 1.25× the input and would never be read back.

Provider	How it is cached
Anthropic, Azure Claude, Vertex Claude	The gateway marks the end of the leading system messages and asks for automatic caching of the whole prompt prefix
Bedrock (Claude 3.5 Haiku, Claude 3.7 and later, Nova)	The gateway places cache points after the leading system messages and after the last message
OpenAI, Azure GPT	Automatic on the provider side; the gateway adds a per-conversation cache key
Mistral	Enabled by the per-conversation cache key the gateway sends
Gemini	Automatic on the provider side

On Claude models, the mark after the system messages lets a new conversation re-read tools and system prompt cached by an earlier one, as long as both are byte-identical — typically every conversation of the same agent. System messages sent mid-conversation come after that mark, so they don’t invalidate it. Keep per-user content (memories, user name, dates) out of the leading system messages, or each user gets their own cache entry. Per model, override the default in Govern → Models: open the model, and in the Advanced step, Provider Config block, edit Prompt Cache (JSON) (stored as provider_config.prompt_cache), for example { "enabled": false }. Set enabled: false for a model without caching support, or enabled: true to force it on a model outside the provider’s supported list once its support is proven — on Bedrock this lifts the model allow-list above (also needed for an application inference profile ARN, which does not name the model family); on Azure GPT and Mistral it lifts the cache-key host allow-list (direct OpenAI always receives the key). The prices of cache reads and writes are set in the model’s Pricing block (see How a cost is calculated).

Via the API

Per request, set prompt_cache in the /chat/completions body: false turns caching off for a conversation call that will never be re-read, true turns it on for a call without a conversation — for example a batch of calls sharing the same system prompt. The automatic caching of OpenAI, Azure GPT and Gemini cannot be turned off; before GPT-5.6 it has no write cost. Per model, override the default in the model’s provider_config.prompt_cache:

PATCH {api}/v2/workspaces/slug:llm-gateway/webhooks/v1/models/{model_id}

{
  "provider_config": {
    "prompt_cache": { "enabled": false }
  }
}

The PATCH replaces the whole provider_config: send its other keys (such as additional_body) along with prompt_cache. Cache reads and writes appear in the API response as usage.cache_read_input_tokens / usage.cache_write_input_tokens, and in analytics as tokens.cache_read / tokens.cache_write on the analytics.llm.completion event.

Per-Agent Model Restrictions

The Agents tab lists every agent in the org, with search and a status filter, and lets you restrict which models specific agents can use.

Why Restrict Agents?

Cost control: Limit expensive model usage to specific agents
Compliance: Ensure sensitive agents only use approved models
Testing: Restrict test agents to cheaper models

Configuring Agent Models

Go to Agents Controls > Agents
Find the agent to configure (search by name if needed)
Click the agent row to open its configuration (Configure agent)
Select allowed models (or leave empty for org defaults: if none are selected, all org models are allowed). You can also set per-agent and per-user rate limits here, under Rate limits: Agent RPM, Agent TPM, Per-user RPM, Per-user TPM, and Per-user exceptions. An empty field means unlimited at that stage; the most restrictive stage wins.
Save changes

Agent hygiene and cleanup

The tab helps you find and retire agents that are no longer useful. A status filter narrows the list to a hygiene category:

Filter	Shows
Active	Received a message recently
Inactive (30d)	No message in the last 30 days
Never used	Published but has never received a message
Dormant drafts	A draft, never used, created over 30 days ago
Published	Live and usable
Draft	Not published yet

Rows carry badges (for example never used or dormant draft) so stale agents stand out. Select one or more agents and use Delete selected to remove them in bulk. Deletion is permanent (it also removes the agents’ conversations) and requires typing a confirmation keyword before it proceeds.

Knowledges

The Knowledges tab sets org-level overrides for the maximum number of pages allowed per vector store. There are two independent limits:

Setting	Applies to
Knowledge vector store max pages	User-created knowledge bases
Conversation_file_search vector store max pages	Per-agent RAG of conversation uploads (typically higher, to scale per-user uploads)

Leave a field empty to fall back to the platform default for that store. Enter a value to override it for your organization, then click Save.

Per-user access control

Enforce per-user access control on every connector knowledge source makes the check mandatory for the whole organization. Through an agent — its file search and Knowledge Explorer alike — each reader then only gets the synced documents they can open themselves in the source, whatever the connection’s own setting, and connection owners can no longer turn it off. A connector that cannot check a reader’s rights serves nothing through an agent while the setting is on.

This setting does not apply to people a knowledge base is shared with directly. They read every document in it, connector documents included, whatever their rights in the source: sharing a base is a decision to give access to its content. Share a base only with people entitled to all of it, and let everyone else reach it through an agent.

Retention

The Retention tab sets your organization’s data-retention policy: how long conversations, documents, tasks, and artifacts are kept before purging, within your subscription plan’s cap. Because retention resolves across three stages (platform default, then org, then per-agent override) and interacts with the plan cap, it has its own page. See Data Retention.

Service Accounts

Service accounts provide machine-to-machine authentication. See Identity & Access for details. In the context of Model Governance:

Link service accounts to specific agents
Track which service accounts consume LLM resources
Control model access per service account

Response length: default and maximum

Two model fields bound the length of an answer. Both are in Govern → Models, in the Limits block of the model form’s Advanced step (models other than embeddings), and each has an (i) hint:

Field	Role	From the catalogue
Response Tokens	Default per call: sent as `max_tokens` when the caller (agent or API) sets none; agents without their own limit also keep this share of the context window for the answer	Never pre-filled nor synced
Max response tokens (max)	The model’s capacity: the gateway caps every call to it, whoever set the limit (caller, agent or the default above)	Pre-filled and kept in sync

When a maximum is set, the Response Tokens hint states it, and a default above it is flagged and cannot be saved. Leave the maximum empty for no cap. An agent’s own Max Response Tokens (Agent Creator) always wins over the model default, and is capped by the maximum like any other call. The default stays small on purpose: setting it to the model’s maximum would make every agent without its own limit reserve that much of its context window, and shorten the conversation history it keeps. Callers can set the limit as max_tokens or as max_completion_tokens (OpenAI’s newer name). The gateway forwards a single max_tokens, at the lower value when both are sent, because OpenAI and Azure refuse the pair and some OpenAI-compatible providers refuse the newer name. A model that requires max_completion_tokens (OpenAI reasoning and GPT-5 models) gets it back through its rename_params (pre-filled from the catalogue, see Per-model exclusions and renames) or the provider’s parameterAliases. A provider entry that excludes max_tokens without such a rename sends no limit (see excludeParameters).

Via the API

Response Tokens is limits.response_tokens and Max response tokens (max) is limits.max_response_tokens on the model (PATCH /v1/models/{model_id}). The catalogue sync updates limits.max_response_tokens and never touches limits.response_tokens (see Aligning an environment with the catalogue).

Model identity and display

Changing a model id

A model’s id cannot be edited. It is the reference stored by agents, organization defaults and allowlists, failover chains and the usage and cost history: renaming it would break those references silently and split the history in two. To move to another id — typically the eu. id of a Bedrock cross-region inference profile — clone the model (row ⋮ → Clone Model). The copy keeps the whole configuration, and its id is editable until it is created; the form proposes the other known ids of the same catalogue entry (Other known IDs). Then point your agents and defaults to the new model, and disable the old one.

Brand logo

The model picker shows the logo of the model’s brand (Brand field: Anthropic, OpenAI, Google, Mistral, Meta, Amazon, DeepSeek, Qwen). The logos ship with the platform, so they also display on environments without internet access. Set Icon URL only to override it; an unknown brand shows its initial.

End-of-life date

The End of life field of the model form (Advanced step, Metrics block, next to Training Date) records the date a provider announced it will retire the model. The model picker and the Models list show an orange End of life on badge with the date, red (End of life since) once the date has passed. It is informational: the gateway keeps routing the model until you disable it, and the provider’s own shutdown is what makes calls fail. The date is pre-filled from the reference catalogue and kept up to date by the catalogue sync; you can also set it yourself, for instance for a deployment that expires before the model.

Via the API

Form field	Model field
Brand	`display.brand`
Icon URL	`display.icon`
End of life	`end_of_life` (`YYYY-MM-DD`)

Model Lifecycle: Hidden vs Disabled

A platform administrator can manage a model’s availability at three levels of severity. Each level has a different effect on what the LLM Gateway accepts, what surfaces in UI pickers, and whether the model is auto-pruned from organization allowlists.
”LLM Gateway” designates the product responsible for llm calls execution and authorization, whether through API calls or chat front-end. In Govern → Models, the model form’s General step has an Enabled checkbox and a Hidden checkbox; Delete Model is in the row’s ⋮ menu.

State matrix

Flag	Set by	LLM Gateway	Org “Allowed models” panel	Agent-level pickers	Auto-pruned from `org.allowed_models`
Visible & enabled (default)	n/a	✅ Accepted	✅ Shown	✅ Shown	n/a
Hidden (`display.hidden: true`)	Platform admin	✅ Still accepted via the org allowlist entry	✅ Still shown; admin can decide to keep or remove it	❌ Filtered out	❌ Stays
Disabled (`enabled: false`)	Platform admin	❌ Rejected (`MODEL_NOT_ALLOWED`)	❌ Filtered out	❌ Filtered out	✅ Removed
Deleted (removed from catalog)	Platform admin	❌ Rejected	❌ Gone	❌ Gone	✅ Removed

Why hidden is not the same as disabled

The hidden flag exists specifically to deprecate a model from UI selection without breaking direct API usage or existing agents that already point to it. Saving the organization’s Allowed models panel without a hidden model would effectively forbid it, so hidden models are left in the list, only filtered out of agent-level dropdowns. An agent that had selected a model before it became hidden keeps using it, and API consumers calling /chat/completions with that model_id keep working. If a model truly must be retired, use Disabled (or delete it from the catalog) to prevent any agent from using it.

Warnings surfaced in the Agent Creator

When you open an agent whose currently-configured model is no longer fully usable, the model picker surfaces one of two messages:

🔴 Error (model unusable): the model has been deleted, disabled at platform level, or removed from the org / agent allowlist. The agent will fail to process any request until you select another model.
🟡 Warning (model hidden): the model has only been hidden at platform level. The agent still works for now, but you’re no longer expected to pick this model; please switch to another one.

The current model is always shown even when filtered out so you can always see what is configured, but does not appear in models picker to force you choose another one.

Via the API

Hide or disable a model by setting display.hidden or enabled with PATCH /v1/models/{model_id}; delete it with DELETE /v1/models/{model_id}.

Model Access Control

When a request arrives, the LLM Gateway validates the requested model against three sequential allowlists:

Org allowlist: Is the model in the organization’s allowed models? (if the list exists and has entries) — set in Agents Controls > Models, Allowed Models
Agent allowlist: Is the model in the agent’s allowed models? (passed by agent-factory) — set in Agents Controls > Agents, Configuring Agent Models
API key scopes: Is the model allowed by the API key’s scopes?

Each check is skipped if the corresponding list is empty or absent. If any check fails, the behavior depends on the quota policy:

Soft Downgrade: silently swaps to the default completion model
Hard Block (default): returns a 403 error with MODEL_NOT_ALLOWED

Carbon Footprint Tracking

Every LLM call carries an estimated environmental impact. The calculation considers GPU energy per token, server overhead, datacenter PUE (Power Usage Effectiveness), and regional emission factors. Results include uncertainty margins (+/- 20%). Per model, set the PUE Profile and Energy/Token in the Metrics block of the model form (Govern → Models, Advanced step):

PUE Profile	Multiplier
Efficient	1.1
Average (default)	1.58
Inefficient	2.0

The region comes from the provider entry by default. In Govern → Models → Providers, each entry has an optional carbon region: empty means World (default), except Bedrock and Vertex entries, which derive it From the region / location. In the model form, the Carbon region field (Advanced step) first offers From the provider (…); pick another region only for a model that runs elsewhere. The form then tells whether the override differs from the provider or is the same, in which case Use the provider removes it. See Setting the region. Carbon data is included in analytics events and powers the observability dashboards.

Via the API

The estimate is returned in every LLM call’s response:

{
  "usage": {
    "carbon": {
      "energy": { "value": 0.000012, "unit": "kWh" },
      "gwp": { "value": 0.0000057, "unit": "kgCO2eq" }
    }
  }
}

The model’s override is its region field; the provider entry’s is carbon_region.

Supported Providers

The LLM Gateway abstracts multiple providers behind a unified API. Providers are configured by platform superadmins in Govern → Models → Providers, which saves them to the LLM Gateway workspace configuration.

Provider	Models	Notes
OpenAI	GPT-5, GPT-4o, o3-mini, embeddings, DALL-E 3	Direct API
Azure OpenAI	GPT-5, GPT-4o, embeddings, Claude (via Azure AI)	Multiple resource configs
OpenAI-compatible	Gemini, DeepSeek, Mistral, Cerebras, OVH, Linagora	Via `openailike` provider type
Anthropic	Claude Sonnet 4.5, Claude 3.7 Sonnet, Claude 3.5 Sonnet	Native API; optional custom `endpoint` + selectable `auth_scheme` for self-hosted / compatible / non-standard Azure hosts
Google Vertex AI	Gemini 2.5/3, Imagen 4.0, text-embedding-005	Via model aliases + service account. Tool calling is supported on Gemini 3.x models
AWS Bedrock	Claude, Titan, Cohere, Nova, Llama	Multiple region/credential sets

All providers are normalized to the OpenAI API format for chat completions and streaming (SSE).

Provider Options

Every provider block in the LLM Gateway config exposes a uniform options object that lets you reshape the request just before it hits the upstream endpoint, without changing application code. Three options are supported, all consumed by the same path inside fetchLLM:

Option	What it does	Applies to
`options.parameterAliases`	Renames request body keys (e.g. `max_tokens` → `max_completion_tokens` for providers that adopted the new OpenAI name)	All providers
`options.excludeParameters`	Drops request body keys the upstream rejects (e.g. `top_p` for models that don’t support it)	All providers
`options.headers`	Attaches arbitrary HTTP headers (tenant tags, gateway subscription keys, correlation IDs…)	All providers

The same three options are also exposed in Govern → Models → Providers for every provider type: each entry has an options.excludeParameters list (add parameter), an options.parameterAliases editor (Add alias) and an options.headers editor (Add header). Click Save to write them to the gateway configuration. Backwards-compatible: any option you omit is a no-op.

Provider options are configured per-provider in the workspace that owns the provider config: LLM Gateway (providers.<provider>.options.*) for the current LLM Gateway architecture, or AI Knowledge (llm.<provider>.options.*) for the legacy AI Knowledge stack. The OpenAI app instance is a pass-through and is not the configuration surface; editing it directly there has no effect on traffic that flows through the gateway.

`parameterAliases`

Each entry is a { from, to } pair. When a key matching from is present in the request body, it is renamed to to (the value is preserved, the old key is dropped). If the body already carries to, that explicit value wins: from is dropped without overwriting it. Typical use: a provider exposes the OpenAI Chat Completions surface but renamed max_tokens to max_completion_tokens.

options:
  parameterAliases:
    - from: max_tokens
      to: max_completion_tokens

`excludeParameters`

Each entry is a body key name to delete before the request is sent. Typical use: a model rejects top_p or presence_penalty and you want to keep your app code provider-agnostic instead of conditionally stripping.

options:
  excludeParameters:
    - top_p
    - presence_penalty

An excluded key is dropped, nothing else: excluding max_tokens sends no output limit to that entry’s models. For models that need the newer name (OpenAI reasoning and GPT-5 models), rename it instead (parameterAliases here, or the model’s rename_params) so the limit is kept as max_completion_tokens. The catalogue update lists the models whose entry excludes max_tokens with nothing renaming it. Excluding stream is a special case: it doesn’t only drop the key from the body, it forces the provider into non-streaming mode. Use it when an upstream endpoint advertises SSE but doesn’t handle it reliably. The gateway then issues a plain request and returns the full completion at once, while the calling agent keeps its usual response shape.

options:
  excludeParameters:
    - stream

Per-model exclusions and renames

Provider options apply to every model of the provider. When only some of its models reject a parameter — temperature on a reasoning model, max_tokens replaced by max_completion_tokens on recent OpenAI models — set it on the model instead: in Govern → Models, open the model, and in the Advanced step, Provider Config block, fill Excluded parameters and Renamed parameters. Both are applied together with the provider’s options, the model’s entries first. They are pre-filled from the reference catalogue for known models. They apply to chat completions, including the Models page Test button.

Via the API

Model field	Provider counterpart	Example
`provider_config.exclude_params`	`options.excludeParameters`	`["temperature", "top_p"]`
`provider_config.rename_params`	`options.parameterAliases`	`{"max_tokens": "max_completion_tokens"}`

GET /v1/models/{model_id} reports the combined exclusions as excluded_params.

`headers`

A map of name → value HTTP header pairs attached to every upstream request. Typical uses: tenant-aware gateways (e.g. Azure API Management in front of Bedrock / Anthropic / Vertex), custom auth schemes, request tagging for cost attribution, or correlating upstream provider logs with Prisme.ai audit trails. In Govern → Models → Providers, set them on a provider entry with its options.headers editor: Add header, then a header name and a value per row. The reference below applies to both the interface and the configuration file. Static values are sent verbatim:

Header name	Value	Sent as
`X-Tenant-Id`	`acme-corp`	`X-Tenant-Id: acme-corp`
`X-Cost-Center`	`R&D-EMEA`	`X-Cost-Center: R&D-EMEA`

Runtime placeholders inject context from the calling Prisme.ai request. The value of the header must be exactly one of the patterns below:

Placeholder value	Replaced with
`{correlationId}`	The Prisme.ai correlation ID of the current request, which propagates trace context to the LLM provider’s logs
`{user.<path>}`	Any field of the calling user, at arbitrary depth. `{user.id}` for the Prisme.ai user ID, `{user.email}` for the email, `{user.authData.entraid.firstname}` for a nested provider-specific claim, etc.
`{userId}`	Legacy alias of `{user.id}`, kept for backwards compatibility; prefer `{user.id}` in new configurations
`{apiKeyId}`	The identifier of the organization API key that authenticated the call. API-key callers carry no user context, so this and `{orgSlug}` are the identity they have
`{orgSlug}`	The slug of the calling organization
`{sourceWorkspaceId}`	The workspace that issued the call, for workspace-to-workspace traffic

Resolution rules for {user.<path>}:

If the path doesn’t exist on the user object, the header value resolves to an empty string.
If the resolved value is not a string (object, array, number), it is JSON-stringified before being sent.

Substitution is full-string only. The value must match the placeholder pattern exactly; composite values such as prefix-{user.id} or req-{correlationId}-v2 are sent as-is, without substitution. Unknown placeholders that don’t match any supported pattern (e.g. {foo.bar}) are also sent verbatim — so the provider receives the literal string {foo.bar}, which is non-empty and therefore looks like a populated header. header_policy, below, catches that — but only for the header names a policy actually requires.

Examples OpenAI-compatible (openailike): typical case of routing through a custom gateway:

- api_key: '{{secret.myProviderApiKey}}'
  endpoint: https://my-openai-like-provider.example.com/v1/
  models:
    - my-model
  options:
    headers:
      x-correlation-id: '{correlationId}'
      x-user-id: '{user.id}'
      x-user-email: '{user.email}'
      x-user-firstname: '{user.authData.entraid.firstname}'
      x-tenant: 'acme-corp'

Anthropic: injecting an Azure API Management gateway’s subscription key in front of a Claude-compatible endpoint:

anthropic:
  api_key: '{{secret.anthropicApiKey}}'
  anthropic_version: '2023-06-01'
  endpoint: https://my-apim.example.net/ai/anthropic/v1/messages
  models:
    - claude-sonnet-4-5
  options:
    headers:
      x-api-key: '{{secret.anthropicApiKey}}'
      Ocp-Apim-Subscription-Key: '{{secret.apimSubscriptionKey}}'
      x-correlation-id: '{correlationId}'
      x-user-email: '{user.email}'

Notes on headers:

Custom headers are merged on top of the provider’s default headers (auth + content-type + provider-specific headers like anthropic-version). Reusing a default header name will override it, useful for Authorization on openailike when the upstream requires a non-Bearer scheme, or for x-api-key on anthropic when fronting Anthropic with an API Management gateway whose key differs from the upstream key.
For multipart endpoints (image edits, openailike only), the Content-Type is dropped automatically so the runtime can set the multipart boundary.
On Bedrock and Vertex, the standard provider auth (AWS Signature v4 / Google service account token) is always added by the gateway, regardless of options.headers; you cannot disable it through this option.

Requiring identity headers — `header_policy`

Configuring an identity header is not the same as receiving one. An unresolvable {user.<path>} resolves to an empty string rather than dropping the header, so a call whose user context lost its email reaches the provider with x-user-email: empty. A placeholder no version of the gateway recognises is worse: it is forwarded literally, so the provider receives the header with the value {apiKeyId} — non-empty, and therefore indistinguishable from a correct value. In both cases the call succeeds and nothing anywhere records that the identity was lost. header_policy turns that into a control. Per caller class, it either refuses the call before the provider is contacted, or lets it through and records the finding. Where it is set. On the organization, under settings.llm, next to allowed_models, default_completion_model and quota_policy. There is no dedicated panel in Agents Controls yet, so it is set with PATCH /v2/orgs/{orgSlug} on the settings object.

That PATCH replaces settings wholesale — it does not deep-merge. Read the organization first, merge your change into the settings you got back, and send the complete object. Sending only {"settings": {"llm": {"header_policy": …}}} wipes settings.quotas along with every other settings.llm key, including allowed_models and quota_policy.For the same reason, importing a governance configuration from the Models tab deletes header_policy: the import rebuilds settings.llm from a fixed list of known fields, and header_policy is not yet one of them. Editing fields in that tab normally is safe — only import/export drops it. Re-apply the policy after any import.

llm:
  allowed_models: [gpt-5-chat-latest, claude-sonnet-5]
  default_completion_model: gpt-5-chat-latest
  header_policy:
    user:
      headers: [x-user-email]
      mode: block
    apikey:
      headers: [x-api-key-issuer]
      mode: report_only
    workspace:
      mode: disabled          # or simply omit the key

Caller classes. The policy is keyed by who is calling, because different callers carry different identities — requiring x-user-email of a machine-to-machine call would refuse every one of them:

Class	Who it is	Identity available
`user`	A real end-user session. Tested first, so it wins whenever a user is present	`{user.<path>}`, `{userId}`
`apikey`	An organization API key with no user context at all	`{apiKeyId}`, `{orgSlug}` — `{user.*}` resolves to nothing here
`workspace`	A trusted workspace-to-workspace call, no user	`{sourceWorkspaceId}`

workspace is the one class an organization policy may not reach. It is only selected when no user is in context at all, and on such a call the organization usually is not resolved either — the gateway then sees no organization settings and falls back to its own default, reporting policySource: gateway. Cover workspace-to-workspace traffic with the gateway-wide default rather than with a per-organization policy — see Gateway-wide settings below.

Modes. mode is mandatory as soon as a class key exists:

Mode	Behavior
`block`	The call is refused with `403 HEADER_POLICY_VIOLATION`; the provider is never contacted
`report_only`	The call proceeds normally and the finding is recorded. Use it to discover which provider entries are missing a header before you enforce
`disabled`	Nothing is checked. Same as omitting the class entirely

An enforcing mode (block, report_only) must declare a non-empty headers array; disabled does not need one. A class that is not declared is disabled — so the policy above checks nothing for workspace callers. The organization value replaces the gateway-wide default wholesale, not merged key by key, so an organization’s policy reads in one place — the same way default_completion_model overrides the gateway’s defaults.completions. An organization opts out of a gateway default entirely with header_policy: {}. What counts as a missing header. Three situations, all of which mean the identity will not reach the provider:

	Situation
Declared but empty	The header is declared in `options.headers` on the provider entry serving the model, but its placeholder resolves empty for this call
Not declared	The required header is absent from the final header set for that provider entry, so it would never be sent
Unresolved placeholder	The configured value looks like a placeholder the gateway cannot resolve. It would reach the provider as the literal string `{apiKeyId}` — non-empty, and so invisible to any emptiness check

Header names are matched case-insensitively (RFC 7230 §3.2), and the check runs at the last point common to every provider family — so it behaves identically on OpenAI, Azure, OpenAI-like, Anthropic, Bedrock and Vertex. It covers chat completions, embeddings, images, image edits, rerank, and the gateway’s own model-routing classifier. The one exception is /v1/test, the connectivity probe behind the Models tab’s test button: it reaches the provider without going through the policy. In block, the caller receives:

{
  "error": "HEADER_POLICY_VIOLATION",
  "message": "Call refused: required identity header(s) would reach the model provider empty.",
  "status": 403,
  "details": { "missing": ["x-user-email"], "model": "gpt-5-chat-latest" }
}

/v1/rerank is the exception to that shape: it wraps any inner completion failure, so a refusal arrives as error: "RERANK_FAILED" with code: "HEADER_POLICY_VIOLATION", still 403, and without the missing list. Match on code as well as error if you handle refusals programmatically. What is recorded. Both modes emit a governance.headers.missing event, visible in the activity feed and available to AI Insights dashboards:

Field	Meaning
`blocked`	`true` when the call was refused, `false` in `report_only`. This is the field that separates the two
`mode`	The mode that applied
`missing`	The header names that would not have arrived
`model`, `provider`	What the call was routed to
`authType`, `policySource`	The caller class, and whether the gateway default or the organization policy applied
`orgSlug`, `userId`, `sessionId`, `apiKeyId`, `correlationId`, `sourceWorkspaceId`	Call context

The user’s email address is never included — only a userEmailPresent boolean, since the missing identity case is exactly the one where the value is untrusted.

Count requests, not events. The check runs once per provider call, and one API request is not one provider call: a failover chain tries each candidate, /v1/embeddings splits large inputs into batches, and model: auto runs a routing classifier that can be refused on its own. Counting distinct correlationId gives you requests; a raw event count gives you attempts. block is tighter than report_only here — it stops at the first refusal on a batched embedding — but it is not guaranteed to be one event per request either.In report_only the finding also appears twice in the activity feed, under the app-prefixed name and under governance.headers.missing. Filter on the exact event type rather than a prefix.

A malformed policy is reported, never fatal. An unknown class key, a missing or unrecognised mode, or an enforcing mode with no headers makes that entry invalid. The gateway then emits an error event with code HeaderPolicyInvalid naming each faulty key and its reason, skips the faulty keys, applies whatever is still valid, and lets the call through:

Reason	What is wrong
`UNKNOWN_CALLER_CLASS`	The key is not `user`, `apikey` or `workspace`
`MODE_MISSING`	The class has no `mode` (including when the value is a bare string such as `user: block`)
`MODE_UNKNOWN`	`mode` is not one of the three
`HEADERS_MISSING` / `HEADERS_NOT_ARRAY` / `HEADERS_EMPTY`	An enforcing mode without a usable `headers` list
`NOT_AN_OBJECT`	`header_policy` is not an object at all — nothing is salvageable, so the control is disabled entirely

So a typo in one class does not disable a correct one, and a mistyped policy never costs an organization its LLM traffic. The condition stays loud — the event repeats on every call until the policy is fixed — it is simply not fatal. Gateway-wide settings. Two keys live in the LLM Gateway workspace’s own configuration, under config.value. They are the platform-level half of the control; the organization settings above are the per-customer half.

Key	What it does
`header_policy`	The default policy, in the same per-class shape as the organization one. It applies to every organization that has not set its own `settings.llm.header_policy`, and it is the only policy that ever reaches `workspace`-class callers
`header_policy_enforcement`	The operator cap: `enabled` (default), `report_only` — which caps every declared mode at reporting, whatever the organizations configured — or `off`, which neutralises the control platform-wide

# workspaces/llm-gateway/index.yml
config:
  value:
    header_policy:
      user:
        headers: [x-user-email]
        mode: report_only
      workspace:
        headers: [x-source-workspace-id]
        mode: report_only
    header_policy_enforcement: enabled

The shape differs from the organization form on one point: on the gateway the policy sits directly under config.value, not under an llm key. Everything else is identical — same caller classes, same modes, same validation, so a malformed entry emits HeaderPolicyInvalid with source: gateway and the valid entries still apply. The release ships header_policy: {}, so no default is in force until you set one. A gateway default is not a safe place to start enforcing: it reaches every organization that has not overridden it. Set block here only once the organizations have been through report_only individually, as in the rollout note below. header_policy_enforcement is an operator control, not an organization one: an organization cannot re-enable a policy the platform turned off. An unrecognised value falls back to enabled and emits HeaderPolicyEnforcementInvalid, so a typo cannot silently switch a compliance control off. Deploying them. Edit index.yml in the repository the gateway is pulled from, then run a platform pull — it rewrites the workspace configuration from index.yml. The exception is a repository that lists index in its pull.exclude: there the stored configuration is deliberately kept and your change never lands, so use the API below instead. To change either key live, without a release, use PATCH /v2/workspaces/{workspaceId}/config. That endpoint replaces the whole value object, so send the complete configuration, providers included, or you wipe the gateway’s configuration.

Roll it out on one organization first rather than gateway-wide. Start in report_only, watch governance.headers.missing to find which provider entries are missing the header, add the missing options.headers lines, then flip that organization to block and extend to the others.

report_only findings reach governance.headers.missing through an event listener bound to the OpenAI app instance by its slug. On a deployment where that instance was renamed from OpenAI, the relay stops silently and report_only produces no event at all — while block keeps working, since the gateway emits that one itself. Check the instance slug before trusting an empty report_only dashboard.

The check itself runs inside the OpenAI app that fronts the providers, at the last point that sees the final header set. On a platform whose apps have not been updated to a version that supports it, the policy is accepted and stored but silently not enforced — no refusal, no governance.headers.missing. Confirm the app version before relying on a block policy for compliance.

Custom Endpoint (Anthropic)

The native Anthropic provider supports an optional endpoint field. When set, it is used verbatim as the request URL instead of the default https://api.anthropic.com/v1/messages. This lets the Anthropic provider target any Anthropic-compatible host: self-hosted Claude deployments, Anthropic-compatible gateways, or Azure AI Foundry endpoints whose URL doesn’t fit the standard {resource}.{domain}/anthropic/v1/messages scheme. In Govern → Models → Providers, the Anthropic card has endpoint, auth_scheme, api_key and anthropic_version fields. The auth_scheme select offers native (the default, which sends the key in x-api-key), bearer and api-key. Click Save to write them to the gateway configuration.

Like the provider options above, this is configured in the workspace that owns the provider config: LLM Gateway (config.value.providers.anthropic.endpoint). The OpenAI app instance is a pass-through and is not the configuration surface.

Configuration reference

Example LLM Gateway config (workspaces/llm-gateway/index.yml, under config.value.providers.anthropic):

anthropic:
  api_key: '{{secret.anthropicClientKey}}'
  anthropic_version: '2023-06-01'
  endpoint: https://my-foundry.example.net/custom/path/v1/messages   # used verbatim
  auth_scheme: bearer        # x-api-key (default) | api-key | bearer
  models:
    - claude-opus-4-6
    - claude-sonnet-4-5

Notes:

Additive: omit endpoint and the provider behaves exactly as before, calling https://api.anthropic.com/v1/messages.
Selectable auth scheme: set auth_scheme to control how the key is sent: x-api-key (default, the standard Anthropic header; native in the interface, which leaves auth_scheme unset), api-key, or bearer (sends Authorization: Bearer <api_key> and omits x-api-key). The key or token always goes in api_key. Omit auth_scheme to keep the default x-api-key behavior. For richer needs (multiple auth headers, gateway subscription keys, request tagging), use options.headers; it overrides anything set by auth_scheme.
Include the full path: the value is taken as-is; append /v1/messages (or whatever path the host exposes).
vs Azure OpenAI format: anthropic: if the URL fits https://{resource}.{domain}/anthropic/v1/messages, configure it as an azure_openai.resources entry with format: anthropic (you get URL forging and can co-locate GPT + Claude on one resource). Use anthropic.endpoint when the URL does not fit that scheme.

Best Practices

Start Restrictive

Begin with a limited model list and expand based on need

Use Soft Downgrade

Prefer soft downgrade to maintain service during quota limits

Monitor Usage

Set alerts before hitting quota limits

Configure Failover

Ensure critical workflows have failover models

Common Scenarios

Cost Control
Compliance
High Availability

To minimize costs while maintaining quality:

Enable Soft Downgrade policy
Configure downgrade mapping:
- claude-3-opus → claude-3-sonnet
- gpt-4 → gpt-3.5-turbo
Set conservative monthly token limits
Use rule-based routing to prefer cheaper models for simple requests

Next Steps

Capabilities

Manage tools, MCP servers, and guardrails

Observability

Monitor model costs and performance

Data Retention

Set how long agent data is kept

​Overview

​Models Configuration

​Allowed Models

​Default Models

​Transcription model for dictation

​Via the API

​Quota Policy

​Downgrade Mapping

​Failover Mapping

​Via the API

​Model Routing

​Routing Strategies

​Rule-Based Routing

​Via the API

​Routing configuration

​Using auto

​Usage Monitoring

​Tracked Metrics

​Understanding Quotas

​Usage Display

​Model pricing

​How a cost is calculated

​Prices are environment data, not a platform default

​Costs are never recalculated

​Currency

​Setting prices in Govern

​cost_tier is a label, not a price

​Checklist after adding or importing models

​Via the API

​Reference catalogue (recommended metrics)

​Using the catalogue in Govern

​Via the API

​Linking a model to the catalogue: catalog_id

​Via the API

​Aligning an environment with the catalogue

​Via the API

​Models declared but not registered

​Via the API

​Adding models from a provider

​Via the API

​Prompt caching

​Via the API

​Per-Agent Model Restrictions

​Why Restrict Agents?

​Configuring Agent Models

​Agent hygiene and cleanup

​Knowledges

​Per-user access control

​Retention

​Service Accounts

​Response length: default and maximum

​Via the API

​Model identity and display

​Changing a model id

​Brand logo

​End-of-life date

​Via the API

​Model Lifecycle: Hidden vs Disabled

​State matrix

​Why hidden is not the same as disabled

​Warnings surfaced in the Agent Creator

​Via the API

​Model Access Control

​Carbon Footprint Tracking

​Via the API

​Supported Providers

​Provider Options

​parameterAliases

​excludeParameters

​Per-model exclusions and renames

Via the API

​headers

​Requiring identity headers — header_policy

​Custom Endpoint (Anthropic)

​Configuration reference

​Best Practices

Start Restrictive

Use Soft Downgrade

Monitor Usage

Configure Failover

Overview

Models Configuration

Allowed Models

Default Models

Transcription model for dictation

Via the API

Quota Policy

Downgrade Mapping

Failover Mapping

Via the API

Model Routing

Routing Strategies

Rule-Based Routing

Via the API

Routing configuration

Using `auto`

Usage Monitoring

Tracked Metrics

Understanding Quotas

Usage Display

Model pricing

How a cost is calculated

Prices are environment data, not a platform default

Costs are never recalculated

Currency

Setting prices in Govern

`cost_tier` is a label, not a price

Checklist after adding or importing models

Via the API

Reference catalogue (recommended metrics)

Using the catalogue in Govern

Via the API

Linking a model to the catalogue: `catalog_id`

Via the API

Aligning an environment with the catalogue

Via the API

Models declared but not registered

Via the API

Adding models from a provider

Via the API

Prompt caching

Via the API

Per-Agent Model Restrictions

Why Restrict Agents?

Configuring Agent Models

Agent hygiene and cleanup

Knowledges

Per-user access control

Retention

Service Accounts

Response length: default and maximum

Via the API

Model identity and display

Changing a model id

Brand logo

End-of-life date

Via the API

Model Lifecycle: Hidden vs Disabled

State matrix

Why hidden is not the same as disabled

Warnings surfaced in the Agent Creator

Via the API

Model Access Control

Carbon Footprint Tracking

Via the API

Supported Providers

Provider Options

`parameterAliases`

`excludeParameters`

Per-model exclusions and renames

`headers`

Requiring identity headers — `header_policy`

Custom Endpoint (Anthropic)

Configuration reference

Best Practices

Common Scenarios

Next Steps
