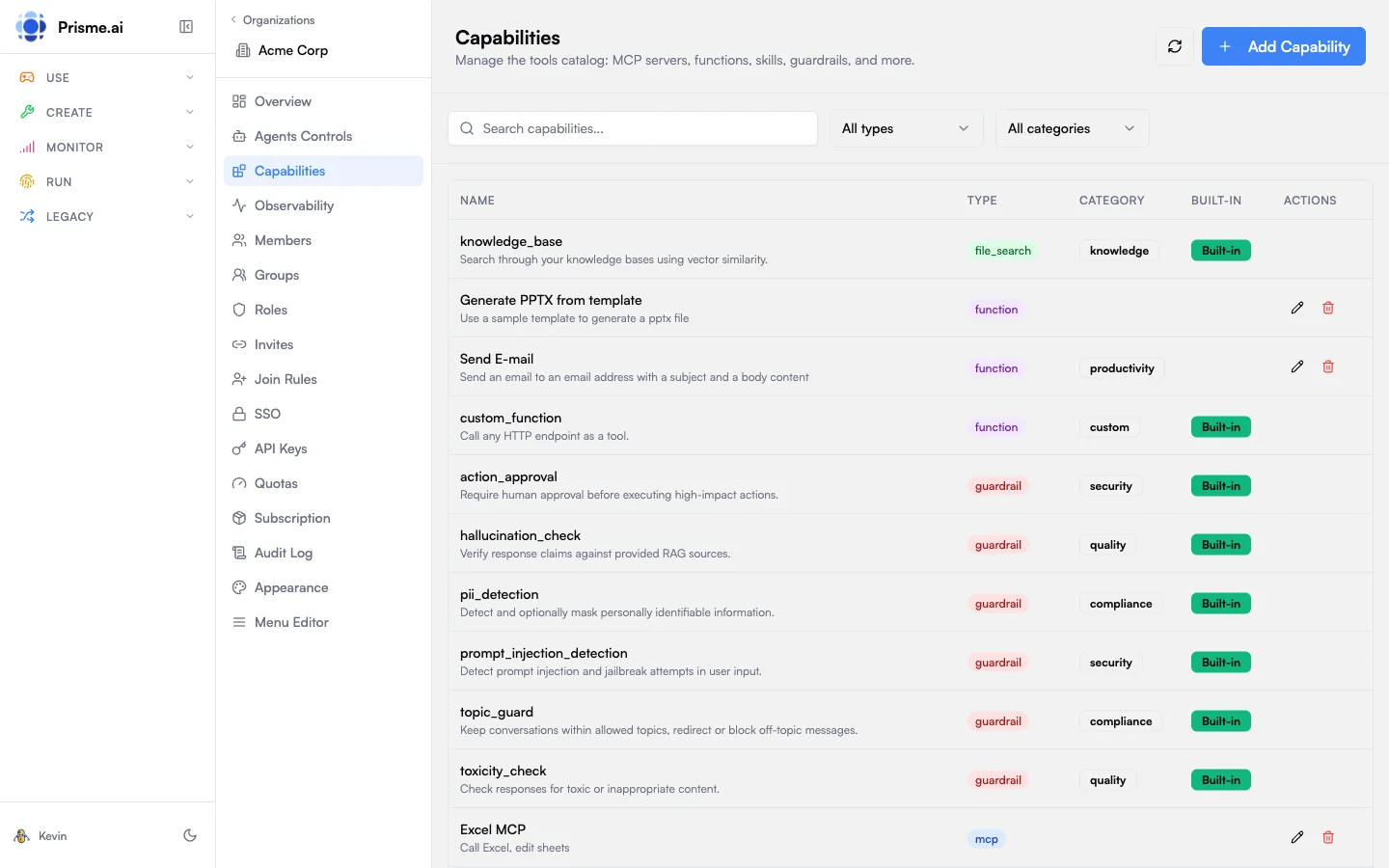

Capabilities Catalog

The Capabilities Catalog is a centralized registry of tools and capabilities available to AI agents in your organization. It includes MCP servers, functions, file search, skills, guardrails, memory providers, and sub-agents.

Capability Types

Type	Description
MCP	Model Context Protocol servers providing tools via SSE/WebSocket
Function	Custom HTTP endpoints callable as tools
File Search	Knowledge base search using vector stores
Skill	Reusable instruction sets for agents
Guardrail	Input/output validation and safety filters
Memory	Conversation and long-term memory providers
Sub-Agent	Other agents that can be invoked as tools

Category	Use Case
Search	Web search, document search, RAG
Productivity	Calendar, email, task management
Security	Authentication, authorization checks
Compliance	PII detection, content filtering
Knowledge	Knowledge bases, documentation
Custom	Organization-specific tools
Store	App store integrations
Generic	General-purpose utilities
Context	Context injection and enrichment

MCP Servers

Model Context Protocol (MCP) servers expose tools to AI agents through a standardized interface.

Adding an MCP Server

Go to Capabilities in the sidebar
Click Add Capability
Select type MCP
Configure:

Field	Description
Entry Name	Display name for this server
Server Name	Identifier used in tool calls
SSE/WebSocket URL	Server endpoint URL
Auth Headers	Authentication headers (JSON)
Scope	Access scope (`org`, `user`)

Click Create

Example Configuration

{
  "name": "company-tools",
  "server": "https://mcp.acme.com/sse",
  "headers": {
    "Authorization": "Bearer {{secrets.MCP_TOKEN}}"
  },
  "scope": "org"
}

The example above uses a single, org-wide credential baked into the headers — every end user reaches the MCP with the same token. Use this when access is shared. When each end user must log in personally — OAuth (Notion, GitHub, Outlook…) or a per-user API key — switch to the per-user authentication pattern below.

Per-user authentication

Add an auth block to the capability so the platform handles connect / disconnect / status checks per end user. Two patterns are supported:

Pattern	Use when
OAuth (`auth.type: "oauth"`)	The third party offers an OAuth flow. Each user is redirected to the provider’s consent page.
JSON auth (`auth.type: "json"`)	The third party requires a static credential (API key, personal token) that the end user supplies in a small form. Stored per user.

Required `auth` fields

Field	Description
`auth.type`	`oauth` or `json`
`auth.status_url`	Endpoint hit per turn to check if the current user is connected. Must return `{ connected: boolean }`.
`auth.connect_url`	Where Chat sends the user to log in. OAuth → provider’s authorize URL. JSON → a Prisme.ai page that captures the credential.
`auth.disconnect_url`	Where the user is sent to revoke (deletes the per-user credential).

The capability hosts these three endpoints itself (typically as a Builder workspace alongside the MCP server). The platform never stores the credential in agent-factory or in the agent — only inside the capability’s own workspace.

Example: MCP server with JSON auth

{
  "name": "finance_mcp",
  "display_name": "Finance MCP",
  "description": "Internal finance API exposed as MCP. Read-only.",
  "icon_url": "https://internal.acme.com/icons/finance.svg",
  "type": "mcp",
  "category": "custom",
  "auth": {
    "type": "json",
    "status_url": "{{global.apiUrl}}/workspaces/slug:finance-mcp/webhooks/auth/status",
    "connect_url": "{{global.apiUrl}}/workspaces/slug:finance-mcp/webhooks/auth/connect",
    "disconnect_url": "{{global.apiUrl}}/workspaces/slug:finance-mcp/webhooks/auth/disconnect"
  },
  "config_schema": {
    "type": "object",
    "properties": {
      "name": { "type": "string", "title": "Tool name", "default": "finance_mcp" },
      "server": { "type": "string", "title": "Server URL", "default": "https://finance.internal/mcp" }
    },
    "required": ["name", "server"]
  }
}

config_schema defines the fields the Agent Builder fills in when adding the capability to an agent in the Agent Creator product (server URL, tool name, scope…). config_schema is not for end users — never use it for credentials.

Implementing the three webhooks

Each auth.*_url points at one webhook automation in the capability’s own workspace. Here is the minimum each must do, mirroring the SharePoint MCP reference implementation:

`status_url` — am I connected?

Triggered by Chat per turn whenever the agent might call the tool. Reads the current end user’s stored credential and returns whether it’s still valid.

slug: checkAuthStatus
when:
  endpoint: true
do:
  - set:
      name: connected
      value: false
  - conditions:
      '{{user.myservice.oauth.expiresAt}} > {{run.date}}':
        - set:
            name: connected
            value: true
output:
  connected: '{{connected}}'

Must return { "connected": true | false }. Add anything else you want to surface to the UI (expiresAt, email, etc.) — Chat ignores unknown fields safely.

`connect_url` — start the flow

For OAuth, generate PKCE + state and redirect to the provider. For JSON auth, render or redirect to a small form that collects the credential.

slug: initiateOAuth
when:
  endpoint: true
do:
  - comment: Generate PKCE + CSRF state, store in user scope for the callback
  - Custom Code.run function:
      function: generatePKCE
      output: pkce
  - set:
      name: user.myservice.oauthPending
      scope: user
      value:
        codeVerifier: '{{pkce.codeVerifier}}'
        state: '{{pkce.state}}'
  - comment: Redirect browser to the provider's authorize endpoint
  - set:
      name: $http
      value:
        headers:
          Content-Type: text/html
  - set:
      name: output
      value: <html><meta http-equiv="refresh" content="0;url={{providerAuthorizeUrl}}"></html>
output: '{{output}}'

The OAuth callback (a separate webhook, e.g. oauthCallback) exchanges the auth code for tokens and stores them via the secrets module with scope: user:

- run:
    module: secrets
    function: set
    parameters:
      name: my_access_token
      scope: user
      value: '{{tokenResponse.access_token}}'

`disconnect_url` — revoke

Deletes the per-user secret and any state stored in user scope:

slug: disconnectOAuth
when:
  endpoint: true
do:
  - try:
      do:
        - run:
            module: secrets
            function: delete
            parameters:
              name: my_access_token
              scope: user
      catch: []
  - delete:
      name: user.myservice.oauth
output:
  disconnected: true

Reference: full SharePoint MCP implementation in the sharepoint-mcp workspace template.

Where credentials live

End-user credentials never leave the capability’s own workspace. Two layers exist, depending on whose credential it is:

Per-user credentials (the user’s OAuth token, personal API key)

Stored via the secrets module with scope: user — encrypted at rest, isolated per user, only readable from inside the capability’s own workspace.
The MCP server’s tool implementations are the only code allowed to read these secrets. They retrieve the calling user’s token at call time, attach it to the outbound API request, and discard it.
The agent never sees the user’s token or credential. It only sees the tool’s response (or the structured error if connected: false). Likewise, agent-factory, secure-chat, and the LLM gateway have no read access — they only know whether the user is connected, never what the credential is.

Infrastructure credentials (the OAuth client secret, upstream API keys, webhook signing keys)

These are not user-specific — they belong to the capability itself (e.g. the OAuth client_secret issued by Microsoft for your SharePoint app, the static API token your MCP uses to talk to its upstream).

Pulled from the platform’s infrastructure secret store — Azure Key Vault, AWS Secrets Manager, Google Secret Manager, or HashiCorp Vault, depending on your deployment.
Referenced inside automations as {{secrets.YOUR_SECRET_NAME}} and rotated centrally by infra.
Same containment rule: only the capability’s own workspace can resolve them. They never appear in agent context, prompts, or logs.

Use the right layer for the right credential:

Credential	Where it lives	Lifecycle
User’s OAuth access/refresh token	`secrets` module, `scope: user`	Created on Connect, deleted on Disconnect
User’s personal API key (JSON auth)	`secrets` module, `scope: user`	Same
OAuth client secret, provider master keys, signing keys	Infra secret store (Key Vault / Secrets Manager / Vault), referenced via `{{secrets.X}}`	Rotated by infra, not the end user

This matters when picking which provider gets a per-user MCP: you trust the capability workspace’s code, not the agent or the LLM, with the credential.

Limiting what the agent can do — service accounts

Per-user authentication controls the third party side (which user the MCP acts as). To limit the platform side (what the agent itself can do across Prisme.ai workspaces), each agent runs under its own service account with a role.

Every agent gets a service account on first call, slug agentfactory_{agent_id}.
The role defaults to agent-standard. Org admins can set a different default in Agent Creator’s defaultAgentSARoleSlug config, or the Agent Builder can override per-agent.
The service account’s permissions decide which workspaces and actions the agent can reach — so an agent with a “read-only” SA cannot mutate other workspaces’ data, even if its own MCP could.

Two-layer mental model:

Concern	Mechanism	Configured by
What can the agent do on behalf of the user in the third party?	OAuth / JSON auth credentials, scoped per user	End User (Connect button in Store or Chat)
What can the agent do on the Prisme.ai platform?	Agent’s service account role	Org admin / Agent Builder

The two layers compose: an agent with a “read-only” SA can still write to a third-party API if the user’s OAuth token has write scopes — and vice versa.

What happens next

Agent Builder (in the Agent Creator product) picks the capability from the catalog and configures the config_schema fields. They never see end-user credentials. → see Agent Capabilities.
End User runs the agent through the Store or through a dedicated Chat (Secure Chat). They are prompted to connect their personal account — proactively from the agent home view, or just-in-time when the agent calls the tool. The connect button opens the provider’s flow (or the JSON form), then the agent resumes automatically. → see MCP Connections & OAuth.

Functions

Functions are custom HTTP endpoints that agents can call as tools.

Adding a Function

Click Add Capability
Select type Function
Configure:

Field	Description
Function Name	Name used in tool calls
Description	What the function does
Endpoint URL	HTTP endpoint to call
Parameters	JSON Schema defining input parameters
HTTP Headers	Headers to include in requests

Example Configuration

{
  "name": "lookup_customer",
  "description": "Look up customer information by ID",
  "url": "https://api.acme.com/customers/lookup",
  "parameters": {
    "type": "object",
    "properties": {
      "customer_id": {
        "type": "string",
        "description": "Customer ID to look up"
      }
    },
    "required": ["customer_id"]
  }
}

File Search

Connect vector stores for knowledge base search.

Adding File Search

Click Add Capability
Select type File Search
Configure:

Field	Description
Tool Name	Usually `knowledge_base`
Vector Store ID	ID of the vector store to search

File search integrates with Knowledges vector stores.

Skills

Skills are reusable instruction sets that modify agent behavior.

Adding a Skill

Click Add Capability
Select type Skill
Configure:

Field	Description
Skill Name	Identifier for the skill
Short Purpose	One-sentence description
Instructions	Detailed instructions (Markdown)

Example Skill

Name: summarize Purpose: Summarize long documents into key points Instructions:

When asked to summarize content:

Read the entire document first
Identify the main thesis or purpose
Extract 3-5 key points
Present as a bulleted list
Keep summary under 200 words

Guardrails

Guardrails validate inputs, outputs, or actions to ensure safety and compliance.

Guardrail Types

Type	When Applied
Input	Before processing user messages
Output	Before returning responses to users
Action	Before executing tool calls

Adding a Guardrail

Click Add Capability
Select type Guardrail
Configure:

Field	Description
Guardrail Name	Identifier
Guardrail Type	input, output, or action
Description	What the guardrail checks
Endpoint URL	Validation endpoint

Example Guardrail

{
  "name": "pii_filter",
  "guardrail_type": "output",
  "description": "Detect and redact PII in responses",
  "url": "https://guardrails.acme.com/pii-check"
}

Memory Providers

Memory providers store conversation history and long-term context.

Adding Memory

Click Add Capability
Select type Memory
Configure:

Field	Description
Memory Name	Identifier
Memory Type	`conversation`, `long_term`, etc.
Description	What this memory stores

Sub-Agents

Sub-agents are other agents that can be invoked as tools, enabling agent composition.

Adding a Sub-Agent

Click Add Capability
Select type Sub-Agent
Configure:

Field	Description
Agent	Select from published agents
Name	Override display name (optional)
Description	What this agent does

Built-in vs Custom

Capabilities are marked as:

Built-in: Provided by the platform, cannot be edited or deleted
Custom: Created by your organization, fully editable

Filtering & Search

Use the toolbar to find capabilities:

Search: Filter by name or description
Type: Filter by capability type (MCP, Function, etc.)
Category: Filter by functional category

Best Practices

Descriptive Names

Use clear, action-oriented names for tools

Secure Authentication

Store credentials in secrets, reference as {{secrets.KEY}}

Document Parameters

Provide detailed descriptions in JSON Schema

Test Before Deploy

Verify capabilities work before enabling for all agents

Next Steps

Model Governance

Control which models agents can use

Observability

Monitor capability usage and errors

​Capability Types

​Categories

​MCP Servers

​Adding an MCP Server

​Example Configuration

​Per-user authentication

​Required auth fields

​Example: MCP server with JSON auth

​Implementing the three webhooks

​status_url — am I connected?

​connect_url — start the flow

​disconnect_url — revoke

​Where credentials live

​Per-user credentials (the user’s OAuth token, personal API key)

​Infrastructure credentials (the OAuth client secret, upstream API keys, webhook signing keys)

​Limiting what the agent can do — service accounts

​What happens next

​Functions

​Adding a Function

​Example Configuration

​File Search

​Adding File Search

​Skills

​Adding a Skill

​Example Skill

​Guardrails

​Guardrail Types

​Adding a Guardrail

​Example Guardrail

​Memory Providers

​Adding Memory

​Sub-Agents

​Adding a Sub-Agent

​Built-in vs Custom

​Filtering & Search

​Best Practices

Descriptive Names

Secure Authentication

Document Parameters

Test Before Deploy

​Next Steps

Model Governance

Observability

Capability Types

Categories

MCP Servers

Adding an MCP Server

Example Configuration

Per-user authentication

Required `auth` fields

Example: MCP server with JSON auth

Implementing the three webhooks

`status_url` — am I connected?

`connect_url` — start the flow

`disconnect_url` — revoke

Where credentials live

Per-user credentials (the user’s OAuth token, personal API key)

Infrastructure credentials (the OAuth client secret, upstream API keys, webhook signing keys)

Limiting what the agent can do — service accounts

What happens next

Functions

Adding a Function

Example Configuration

File Search

Adding File Search

Skills

Adding a Skill

Example Skill

Guardrails

Guardrail Types

Adding a Guardrail

Example Guardrail

Memory Providers

Adding Memory

Sub-Agents

Adding a Sub-Agent

Built-in vs Custom

Filtering & Search

Best Practices

Next Steps
