Webhook Builder

This tutorial shows you how to build powerful automations that combine webhooks, APIs, and AI capabilities. You’ll learn to create a system that can receive data via webhooks, process it with custom code, and use AI to generate intelligent summaries—all without managing traditional databases.

What You’ll Build

A complete API and webhook integration with:

A webhook endpoint to receive external data
Custom code processing for data transformation
AI-powered text summarization using an Agent Creator agent (called via the Agent Factory App)
Seamless event-driven communication between components

This solution demonstrates how Prisme.ai can transform simple API integrations into intelligent data processing systems using generative AI to extract insights from incoming data.

Prerequisites

Before starting this tutorial, make sure you have:

An active Prisme.ai account
The Agent Factory App installed in your workspace (search for “Agent Factory App” in the marketplace; its automation namespace is Agents)
An Agent Factory API key generated in Agent Creator (open any agent → Settings → API Keys) and pasted into the Agent Factory App’s configuration field apiKey after installing it. This is required for the webhook to call the agent from an unauthenticated request — without it, Agents.sendMessage returns 401 UNAUTHORIZED.
The Custom Code app installed in your workspace
An agent created in the Agent Creator product, configured with the system instructions you want for the summary task

Step 1: Creating Your Workspace

Let’s start by setting up a dedicated workspace for our webhook integrations:

Open Builder

Create a New Workspace

Click ”+ Create new workspace”, then on step 1 choose “From Scratch”.

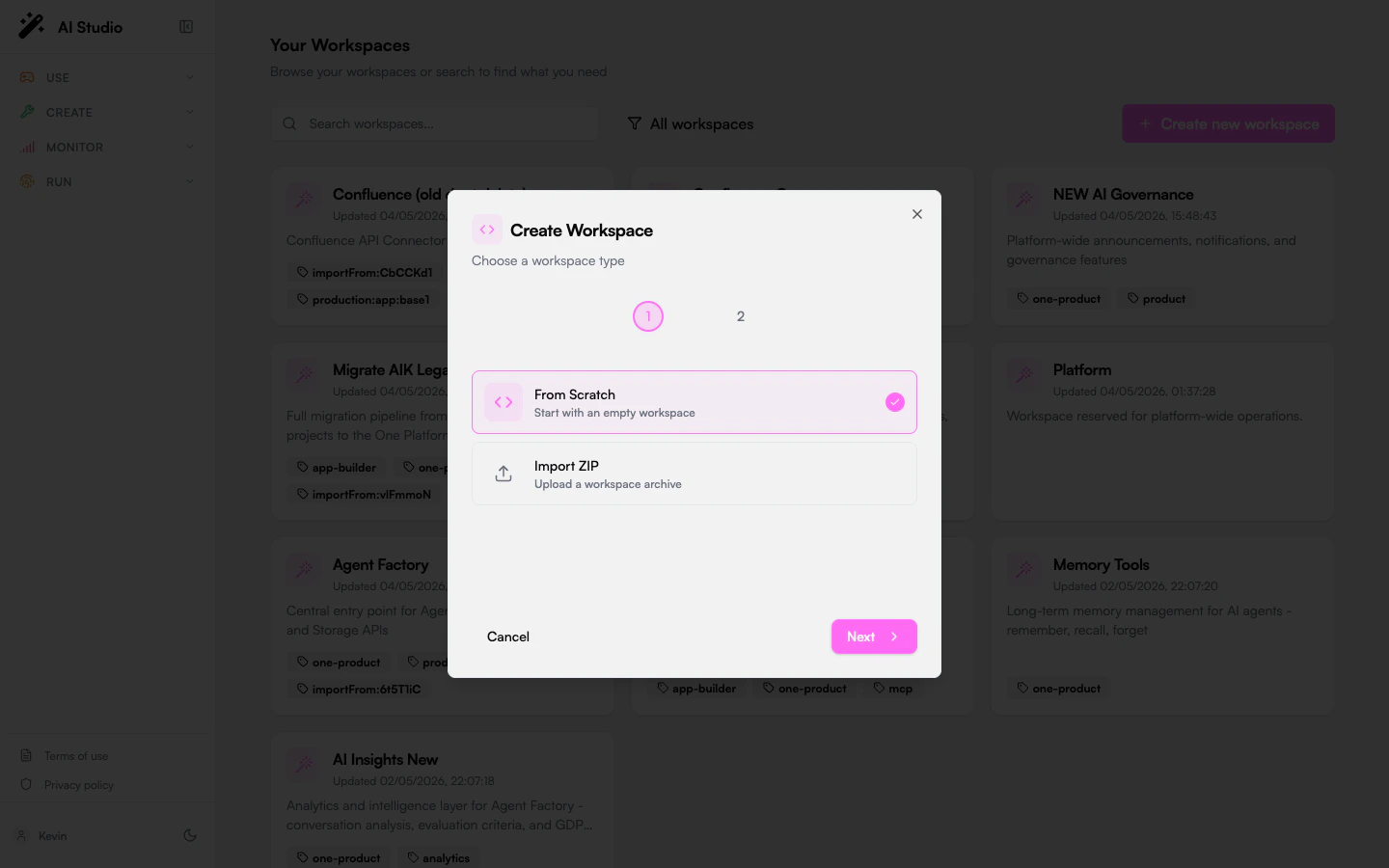

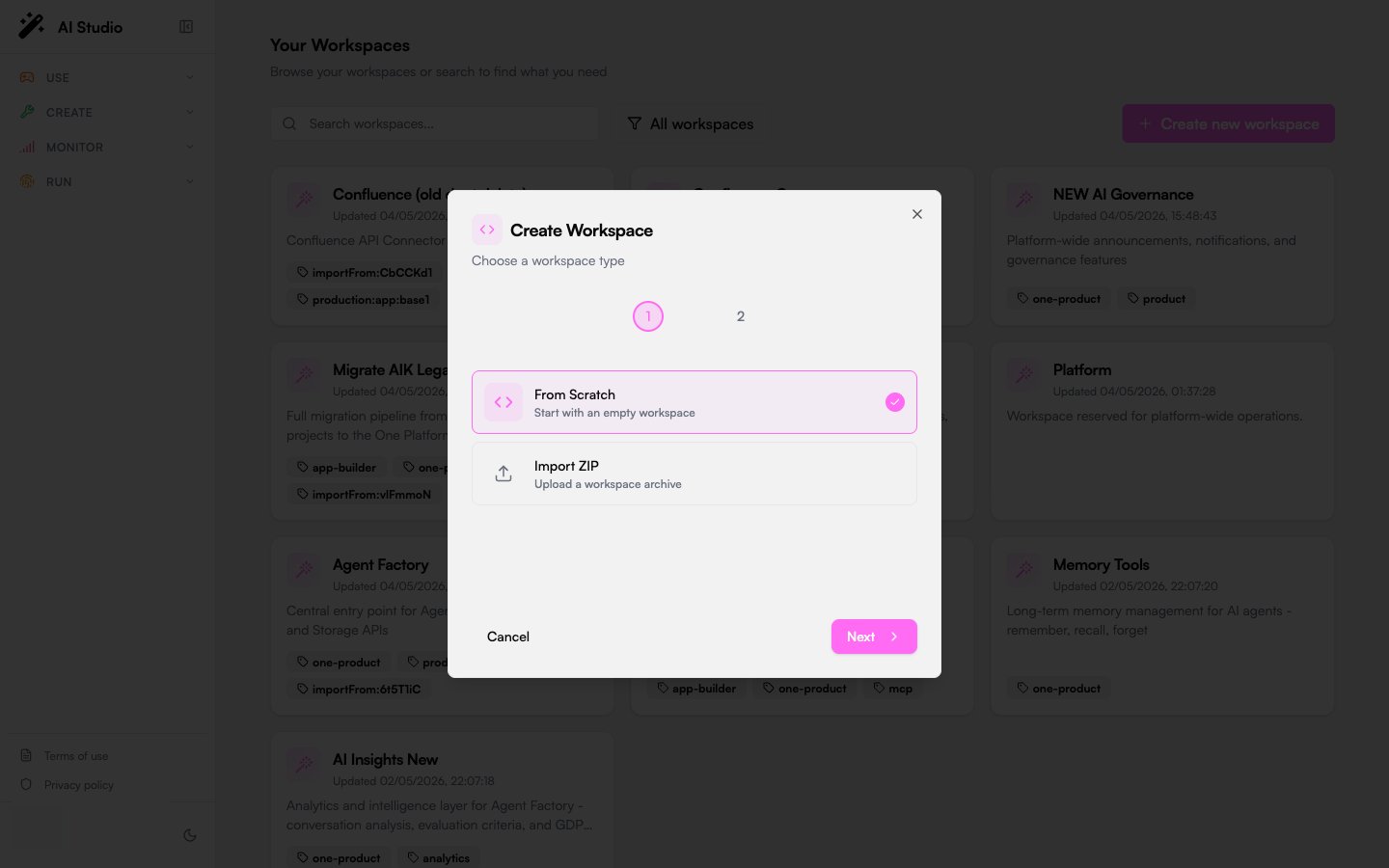

Builder Create Workspace wizard step 1: From Scratch / Import ZIP

Configure Workspace Settings

On step 2, fill in:

Name: “AI API Integrator” (or a name of your choice)
Description: a short summary of the workspace purpose

Click “Create Workspace” to land in the empty workspace.

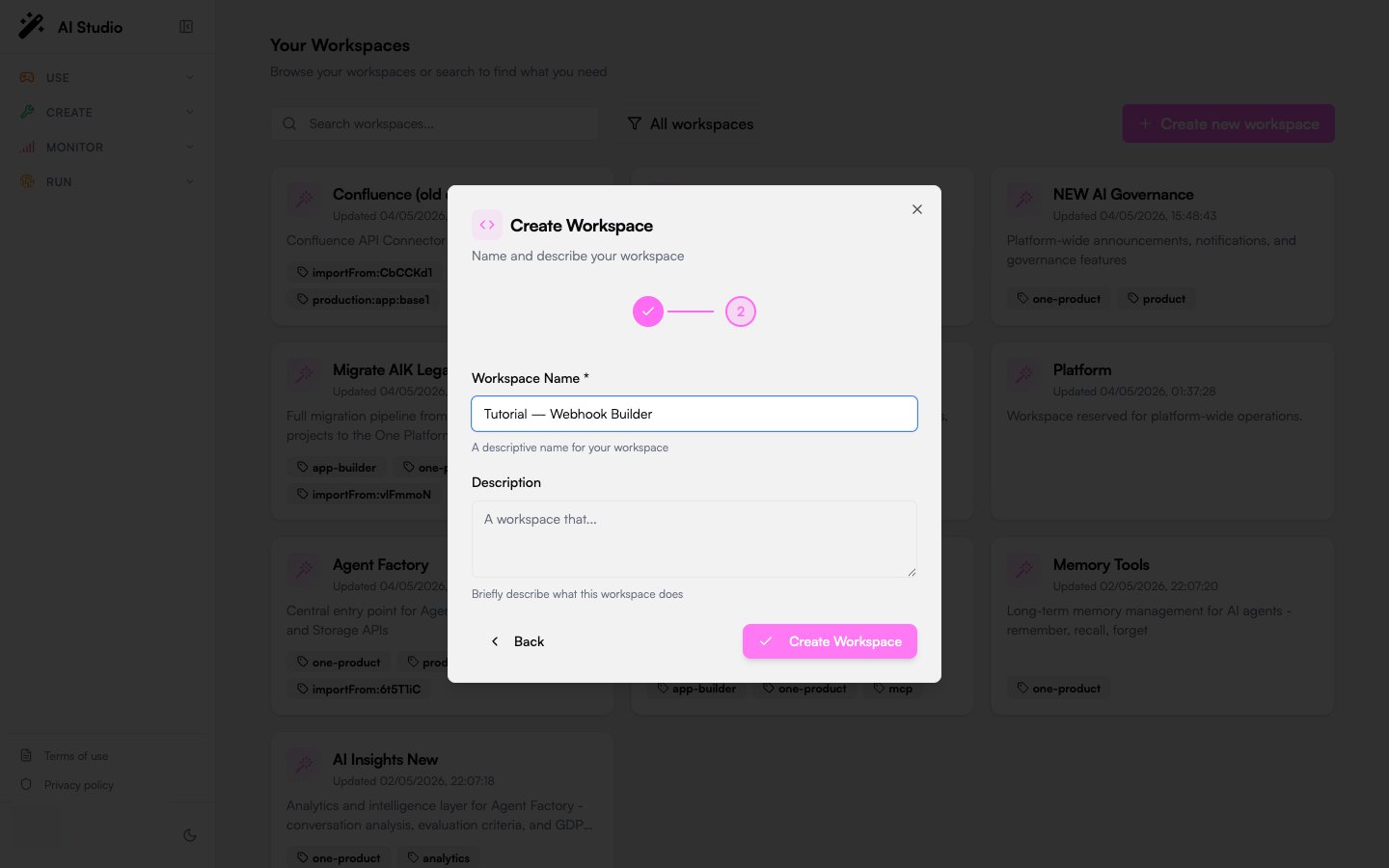

Builder Create Workspace wizard step 2: name and description

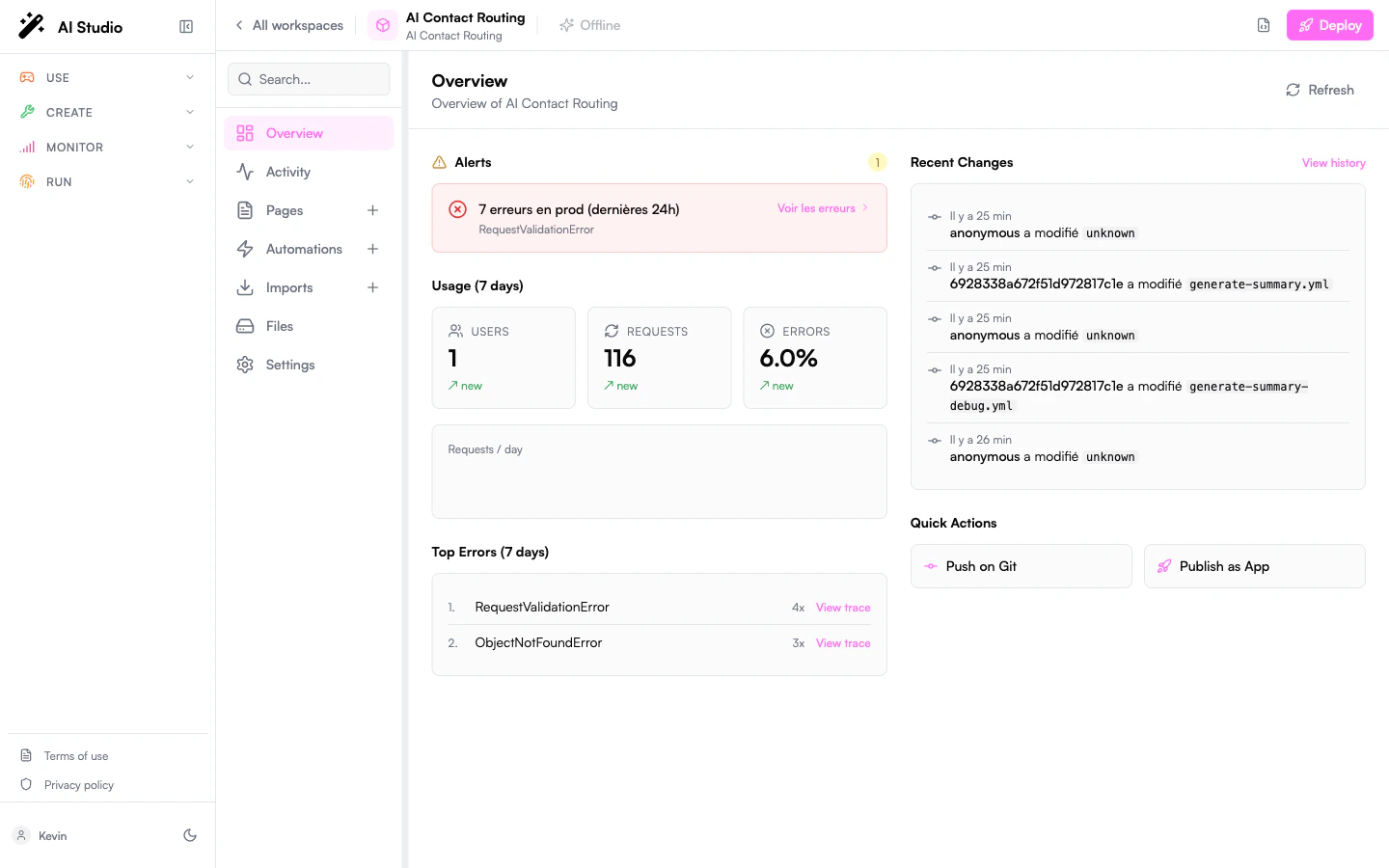

Builder workspace Overview page with sidebar (Overview, Activity, Pages, Automations, Imports, Files, Settings) and Usage / Recent Changes / Quick Actions panels

The screenshot shows an existing populated workspace; yours will start empty until you add automations and pages.

Step 2: Creating the Summary Generation Automation

First, let’s create the automation that will use AI to generate summaries from JSON data. The actual summarization prompt lives on the agent itself in Agent Creator — this automation only forwards the user message.

Navigate to Automations

In your workspace, go to the Automations section.

Create a New Automation

Create a new automation with:

Name: “Generate Summary”
Slug: “generate-summary”

Configure the Automation

Use the following YAML configuration:

slug: generate-summary
name: Generate Summary
do:
  - set:
      name: stringifiedData
      value: '{% json({{payload.data}}) %}'
  - Agents.sendMessage:
      agent_id: '{{config.summaryAgentId}}'
      message:
        parts:
          - type: text
            text: '{{stringifiedData}}'
      output: agentResponse
when:
  events:
    - summary-event
output: '{{agentResponse.task.output.messages[0].parts[0].text}}'

Save the Automation

Save the automation.

The instruction “Create a brief summary from a JSON object, focusing on key details and overarching information…” should be set as the system instructions on the agent itself, in Agent Creator — not in this YAML. The automation only sends the user message; the agent’s behavior is fully owned by its configuration.Store the agent’s ID under your workspace Configuration as summaryAgentId so it’s easy to swap later. To get the ID, open the agent in Agent Creator and copy it from the URL. Make sure the agent uses a model your organization has enabled in Governe (e.g. gpt-4o); a disallowed model returns an error in the same response shape.

We parse the JSON object as a string using the json() utility function because language models expect text input, not structured JSON.Agents.sendMessage returns an A2A task object. The model’s reply is at agentResponse.task.output.messages[0].parts[0].text — that’s the path used in the output: line above. The full task object also contains usage (tokens, cost), task.id, and task.contextId (useful if you want to continue the conversation by passing it back as context_id on the next call). Inspect the activity log to see the complete shape.

Step 3: Creating the Webhook Automation

Now, let’s create the webhook automation that will receive data and trigger the summary generation:

Create Another Automation

Back in the Automations section, create another automation.

Configure the Webhook Automation

Use the following settings:

Name: “Webhook”
Slug: “webhook”
Trigger: Enable “Endpoint” to make it accessible via URL

Set Up the Automation Logic

Configure the automation with this YAML:

slug: webhook
name: Webhook
do:
  - Custom Code.run function:
      function: CleanData
      parameters:
        data: '{{query}}'
      output: cleanData
  - emit:
      payload:
        body: '{{body}}'
        headers: '{{headers}}'
        data: '{{cleanData}}'
      event: summary-event
when:
  endpoint: true
output:
  message: '{{cleanData}}'

Save the Webhook Automation

Save the automation.

Get Your Webhook URL

Open the “Triggered when” section of your automation
Click “Get the link”
Copy the displayed URL, which will look like: https://api.studio.prisme.ai/v2/workspaces/YOUR-WorkspaceID/webhooks/webhook

Step 4: Configuring Custom Code

Now, let’s set up the Custom Code app to process our incoming data:

Access Custom Code App

Open the Imports section in your workspace sidebar and open the Custom Code app.

Create the CleanData Function

Configure the Custom Code app with the following YAML:

appName: Custom Code
slug: Custom Code
config:
  functions:
    CleanData:
      code: |-
        return data;
      parameters:
        data:
          type: object
          default: [
              {
                "id": 1,
                "name": "John Doe",
                "email": "john.doe@example.com",
                "isActive": true,
                "roles": ["admin", "user"]
              },
              {
                "id": 2,
                "name": "Jane Smith",
                "email": "jane.smith@example.com",
                "isActive": false,
                "roles": ["user"]
              }
            ]

Save the Custom Code Configuration

Save your Custom Code settings.

The Custom Code function includes a default value for testing purposes. In a real-world scenario, you would likely perform more complex data transformation operations here.

Step 5: Testing Your Webhook Integration

Let’s test our webhook and see the AI summary generation in action:

Prepare a Test Request

You can test your webhook by making an HTTP request to your webhook URL with query parameters, for example: https://api.studio.prisme.ai/v2/workspaces/YOUR-WorkspaceID/webhooks/webhook?city=Toulouse&country=France

Send the Request

Use a tool like curl, Postman, or simply enter the URL in your browser to trigger the webhook.

Check the Response

The webhook should return a message containing the clean data.

Verify Summary Generation

Check your activity logs to confirm that the summary-event was triggered and that an Agents.sendMessage call was made to your agent with payload data such as:

{
  "city": "Toulouse",
  "country": "France"
}

Expand the Agents.sendMessage event in the activity log to see the full agent response captured in agentResponse.

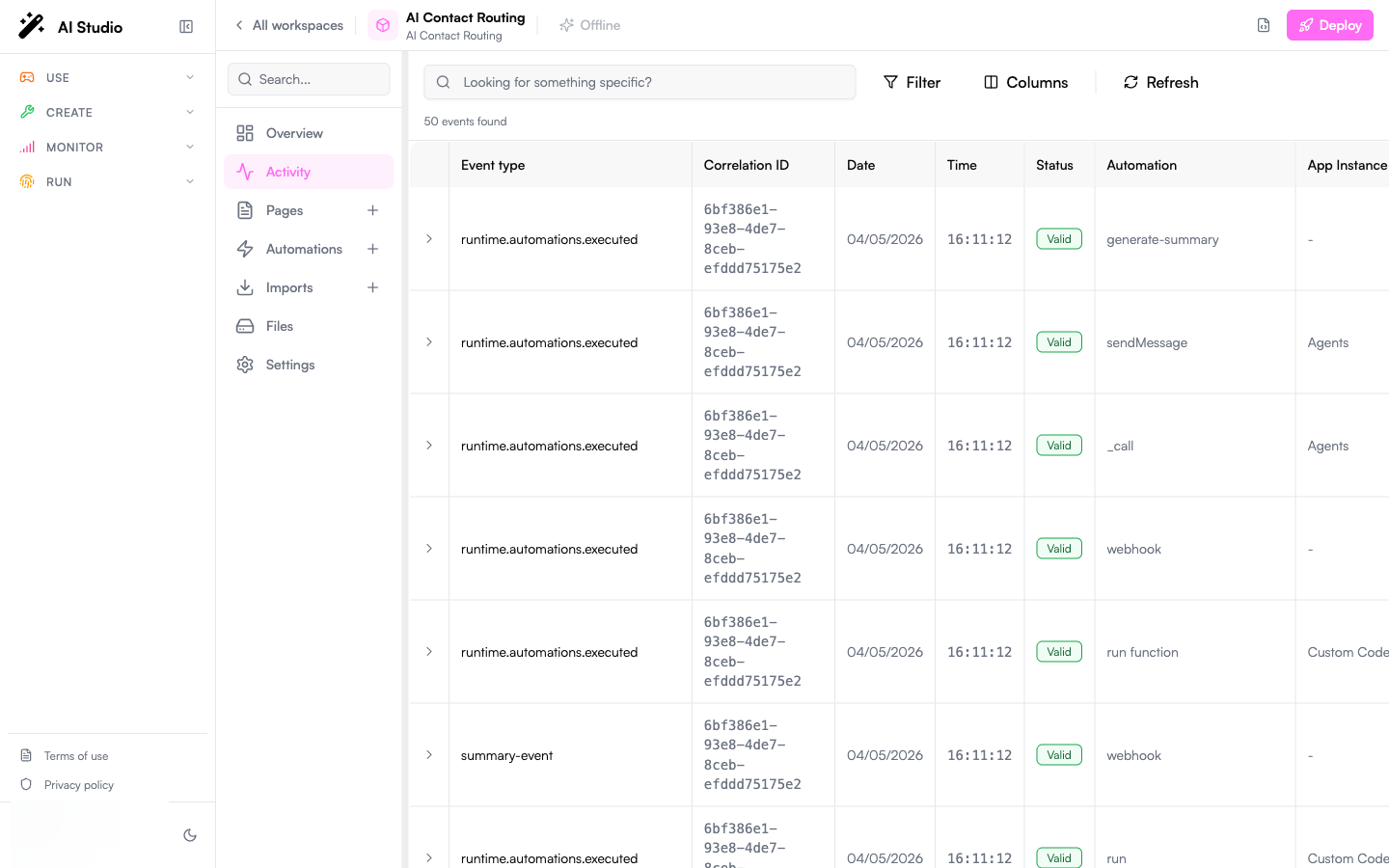

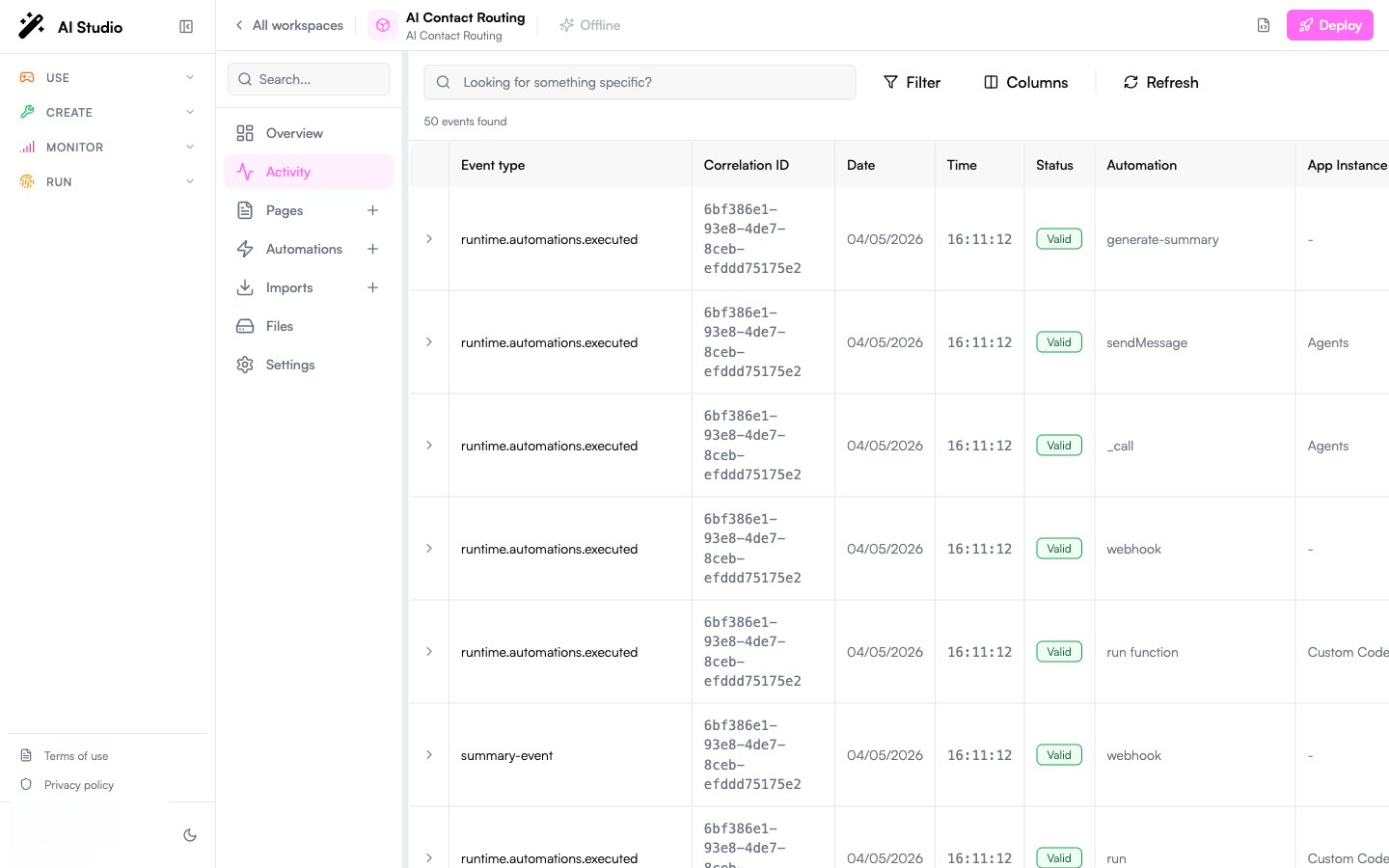

Builder workspace Activity log listing runtime.automations.executed events for generate-summary, sendMessage, _call, webhook, run function and the summary-event trigger

Understanding HTTP Variables in Webhooks

When working with webhooks in Prisme.ai, several HTTP variables are automatically available at the root level inside your endpoint automation:

query: Contains query parameters from the URL
body: Contains the request body (for POST/PUT requests)
headers: Contains the HTTP request headers
method: Contains the HTTP method used (GET, POST, etc.)

In our webhook example, we’re passing the query variable to our Custom Code function and including both headers and body in the payload that triggers the summary-event.

Version Control and Deployment

To manage your webhook integrations effectively:

Save Your Current State

Use the Push button in your workspace to create a new version.

Create Additional Versions

As you make changes and improvements, create new versions to maintain a history of your work.

Deploy Specific Versions

Select which version to deploy in your workspace settings.

For more information, see the documentation on Version Control and RBAC.

Monitoring and Logs

Keep track of your webhook activity and performance:

Access Activity Logs

Open the Activity section from the Builder workspace sidebar to view detailed records of webhook calls, automation triggers, and AI operations.

Set Up Alerts

Configure alerts for critical events or errors in your automations.

Analyze Performance

Use logs to identify patterns, bottlenecks, or areas for improvement.

Extending Your Webhook Integration

Your base webhook system is powerful, but consider these enhancements:

Authentication: Add API key validation or OAuth to secure your webhooks
Enhanced Processing: Implement more complex data transformations in your Custom Code
Multiple Endpoints: Create different webhook endpoints for various data sources or purposes
Error Handling: Add comprehensive error handling and retry mechanisms
Integration: Connect your webhooks to other systems like databases, messaging platforms, or CRMs

Next Steps

Document Classification System

Build an AI-powered document management system

AI Contact Routing

Create intelligent contact form routing with AI analysis

Create a RAG Agent

Build a knowledge base agent using your own data

Custom Apps Development

Learn to build more complex applications with Builder
